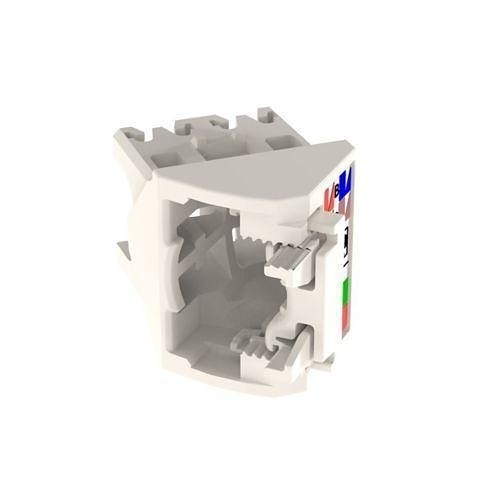

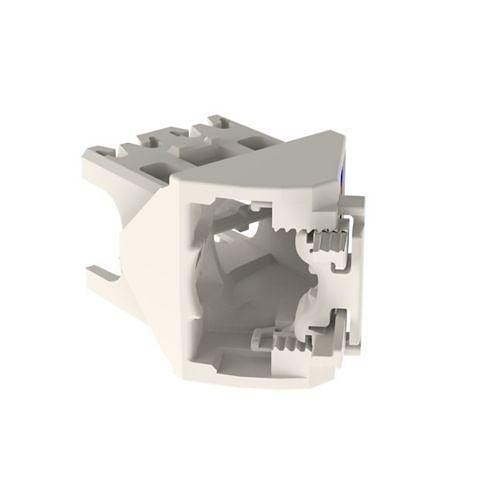

Panduit CJLRCAPIW-X 45° Angled Wire Cap for CAT6 UTP TG Jack

CJLRCAPIW-X | P9-JLRCAPIWX

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

45° angled wire caps, when mated with compatible UTP jack modules, shall provide improved cable routing to jacks in confined spaces. Angled wire caps shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.

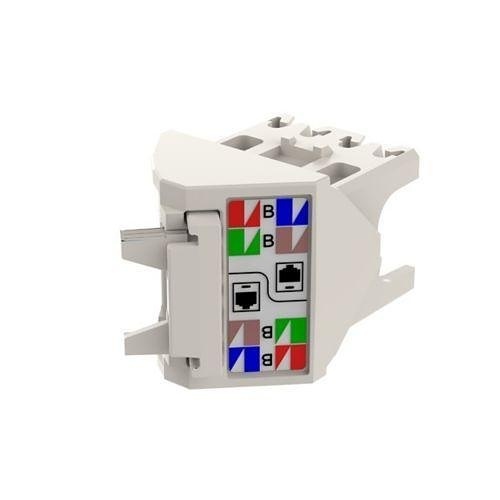

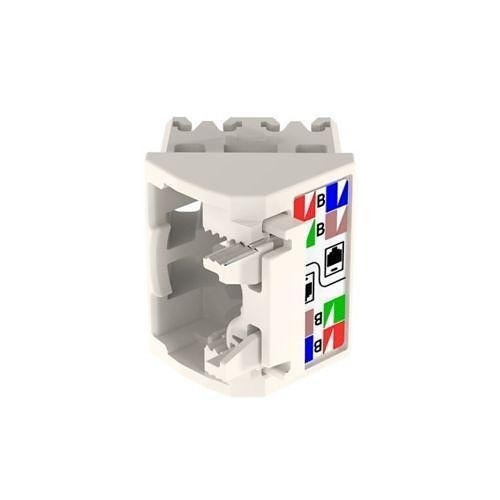

The wire caps shall be color-coded to designate performance category and shall include a universal label coded for T568B wiring schemes.

Main Features

  • Angled cable exit: Large diameter cable can be routed to jacks in tight spaces while maintaining proper bend radius; also can be used on multiple jacks positioned next to each other
  • Reversible direction design: Both wire cap versions can be inserted into compatible jacks in either direction, bringing the convenience of needing only two parts to handle up, down, left, or right cable routing needs
  • Wide compatibility: Immediate compatibility with Panduit's most common Mini-Com® UTP jacks
  • Economical: Angled wire caps can easily be applied to new or already installed compatible jacks to gain routing advantages without needing to purchase new jacks
  • Uses enhanced Giga-TX Technology: Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Consistent termination design: Similarity in both conductor management and termination method to Panduit's most common straight exit Mini-Com® UTP jacks; ensures minimal learning curve and fast field terminations
  • Termination tool available: TGSJT termination tool functions for both wire cap versions and ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability

    • General Information

    Name:Panduit CJLRCAPIW-X 45° Angled Wire Cap for CAT6 UTP TG Jack
    Category:Panduit, Data Comm & Networking, Cable Connectors, Inserts & Adapters
    UPC Code:613056256347
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
    Manufacturer Brochure
    Additional Resources
