Panduit DNFR14-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR14-250B-L|P9-FR14250BL
Panduit DNFR14-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR14-250B-L|P9-FR14250BL
Panduit
Panduit DNFR14-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
DNFR14-250B-L | P9-FR14250BL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

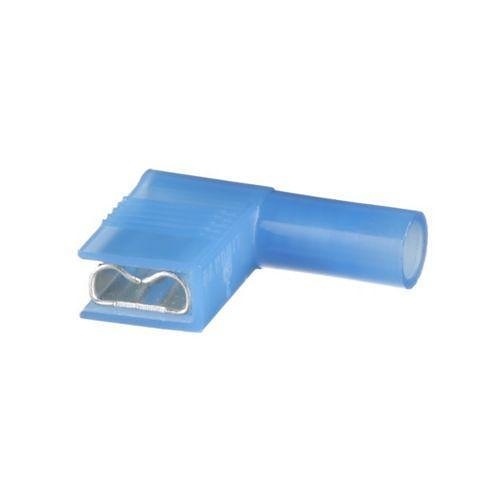

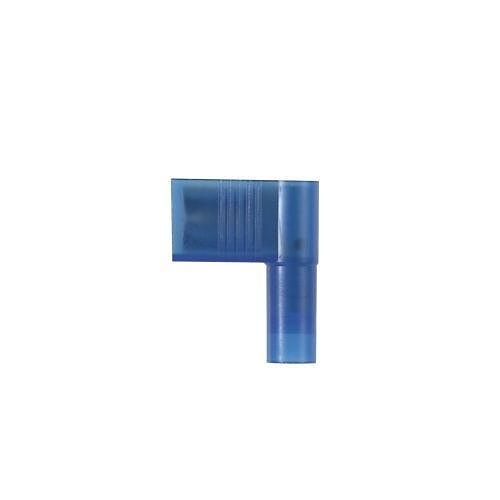

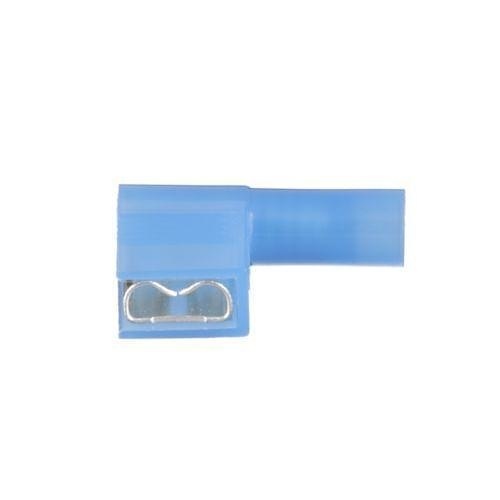

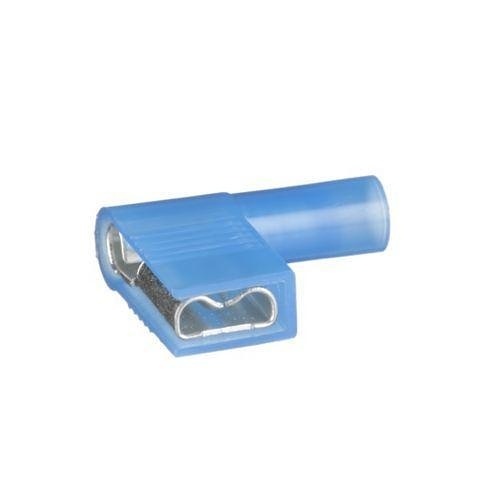

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.63" (16.0 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.
Main Features
General Information
Name:Panduit DNFR14-250B-L Female Disconnect Right Angle Nylon Insulated Connectors
Category:Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code:074983124572
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-FR14250BL Brand Name Panduit Manufacturer Part Number DNFR14-250B-L Product Type Terminal Connector
American Wire Gauge 14AWG Material Brass
Color Blue Height 0.2" Weight 16lb Width 0.4"
Length 0.63"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Right-angled Connector
