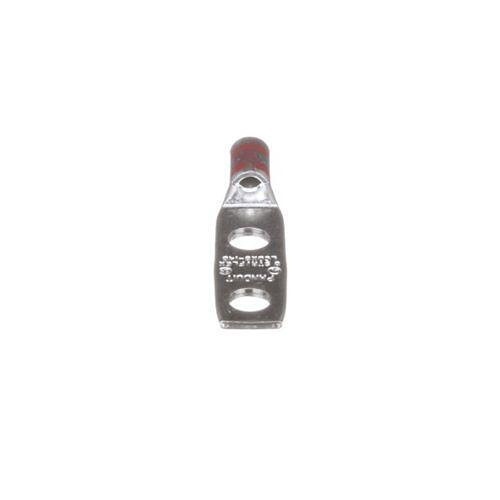

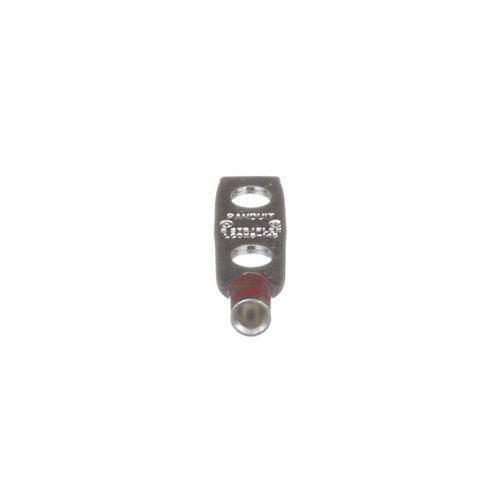

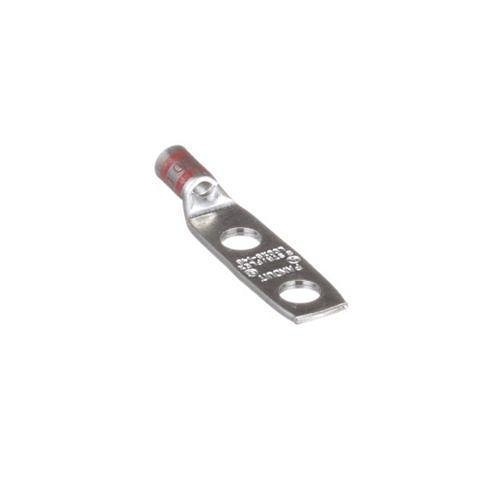

Panduit LCDX8-14BNS-L Compression Connector Lug, 2-Hole, Flex, #8AWG, Copper
LCDX8-14BNS-L
|P9-DX814BNSL
Shop All Panduit
Panduit LCDX8-14BNS-L Compression Connector Lug, 2-Hole, Flex, #8AWG, Copper
LCDX8-14BNS-L | P9-DX814BNSL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCDX8-14BNS-L Nickel/Silver plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. Nickel/Silver plated material has high thermal conductivity which facilitates the efficient transmission of electricity and heat. cULus Listed to 35 KV and temperature rated to 90°C.
Main Features
- Nickel/Silver plated Copper Compression Lug
- Two-hole standard barrel design
- Color-coded barrels with Panduit and competitor die index numbers
- Generously beveled wire entry to prevent bent back strands
- High thermal conductivity for efficient transmission of electricity and heat
- cULus Listed to 35 KV
- Temperature rated to 90°C
General Information
Name: Panduit LCDX8-14BNS-L Compression Connector Lug, 2-Hole, Flex, #8AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056860407
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-DX814BNSL Brand Name Panduit Manufacturer Part Number LCDX8-14BNS-L
Length 1.95"
