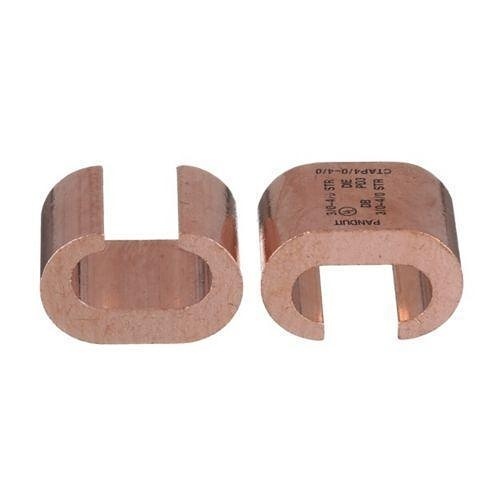

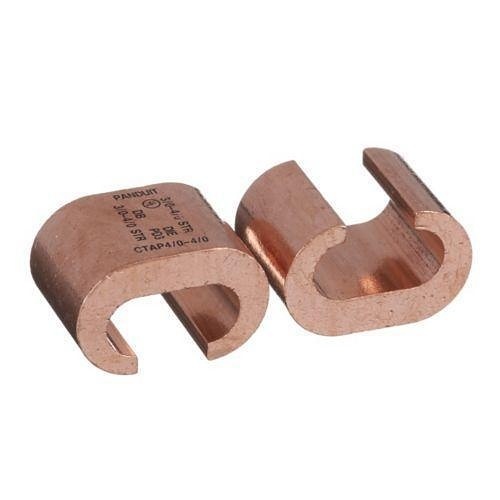

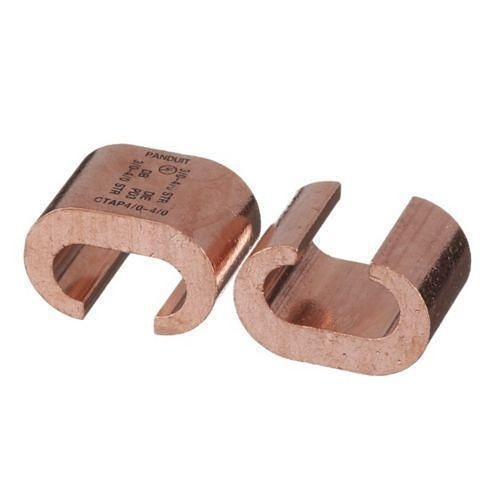

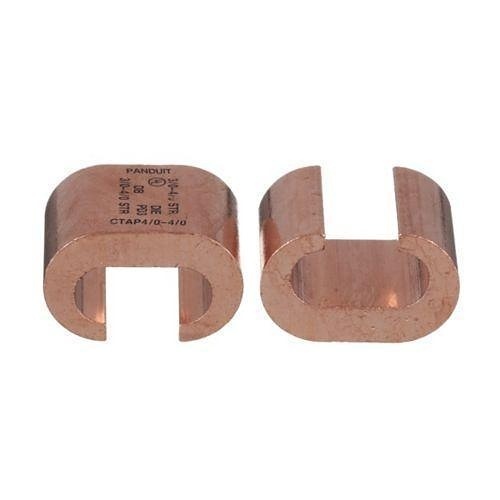

Panduit CTAP4/0-4/0-X Copper Compression Connector Tap, 3-Pack, Heavy Duty
CTAP4/0-4/0-X|P9-CTAP4040X
Panduit CTAP4/0-4/0-X Copper Compression Connector Tap, 3-Pack, Heavy Duty
CTAP4/0-4/0-X|P9-CTAP4040X
Panduit
Panduit CTAP4/0-4/0-X Copper Compression Connector Tap, 3-Pack, Heavy Duty
CTAP4/0-4/0-X | P9-CTAP4040X
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The CTAP4/0-4/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL 486 for use up to 35 kv and temperature rated 90°. Also, UL listed per UL 467 for grounding and bonding suitable for direct burial.
Main Features
General Information
Name:Panduit CTAP4/0-4/0-X Copper Compression Connector Tap, 3-Pack, Heavy Duty
Category:Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code:074983911219
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-CTAP4040X Brand Name Panduit Manufacturer Part Number CTAP4/0-4/0-X Product Type Grounding Connector
Material Copper
Height 1.6" Thickness 1.1" Width 1.1"
Length 1"
Limited Warranty 1-Year
Compatibility - For Use With: AWG wire only
- Application: Utility/Ground Grid
