Panduit CTAP2/0-2-X Copper Compression Connector Tap, Heavy Duty, 1-Pack
CTAP2/0-2-X
|P9-CTAP202X
Shop All Panduit
Panduit CTAP2/0-2-X Copper Compression Connector Tap, Heavy Duty, 1-Pack
CTAP2/0-2-X | P9-CTAP202X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

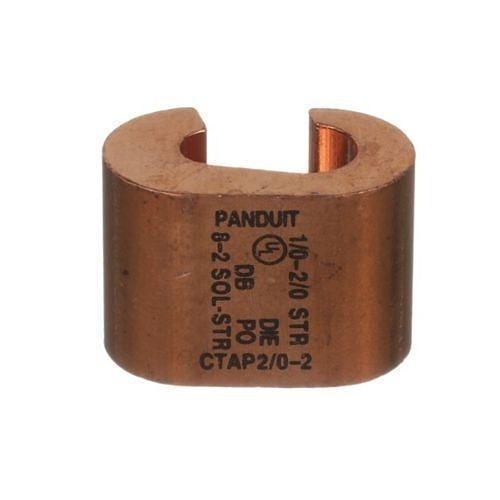

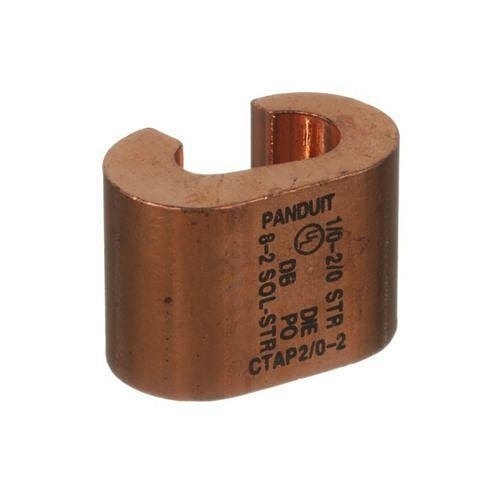

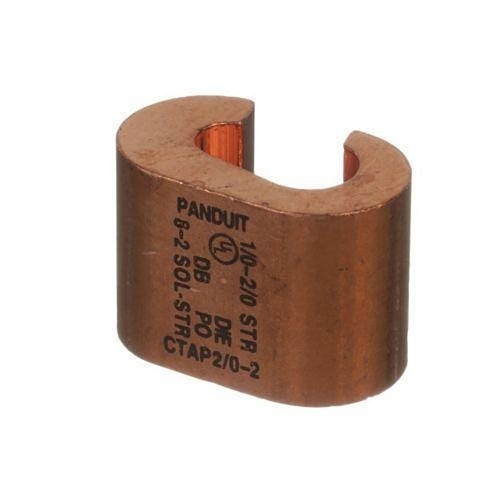

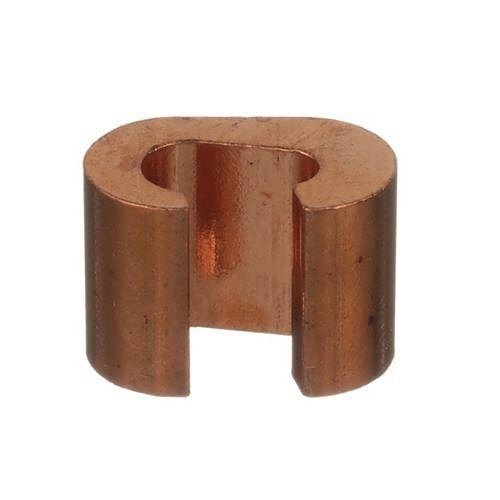

The CTAP2/0-2-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per ul 486 for use up to 35 kv and temperature rated 90°c when crimped with Panduit and specified competitor crimping tools and dies.
Main Features
- Provides high-strength and premium electrical properties
- Suitable for solid and stranded copper Code conductors
- Enables tapping into unbroken continuous main
- Functions as a wire joint or two-way splice
- Wide wire range-taking capability minimizes inventory
- UL listed per ul 486 for use up to 35 kV
- Temperature rated 90°C when crimped with specified tools
General Information
Name: Panduit CTAP2/0-2-X Copper Compression Connector Tap, Heavy Duty, 1-Pack
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983821303
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CTAP202X Brand Name Panduit Manufacturer Part Number CTAP2/0-2-X
Length 0.80"
Compatibility AWG wire only
