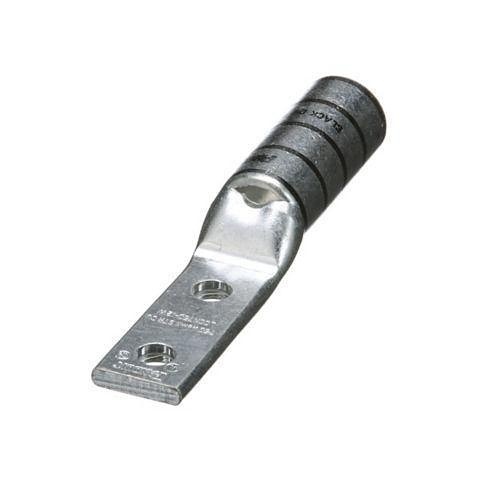

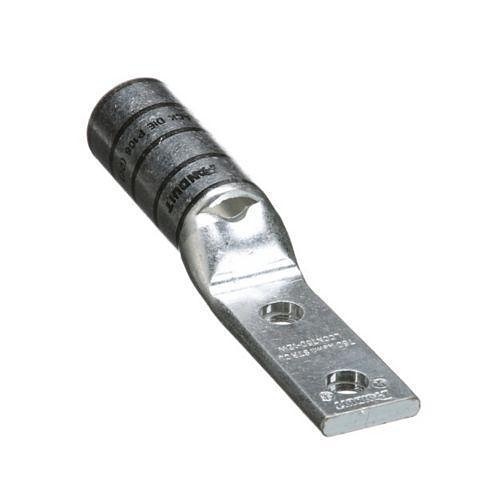

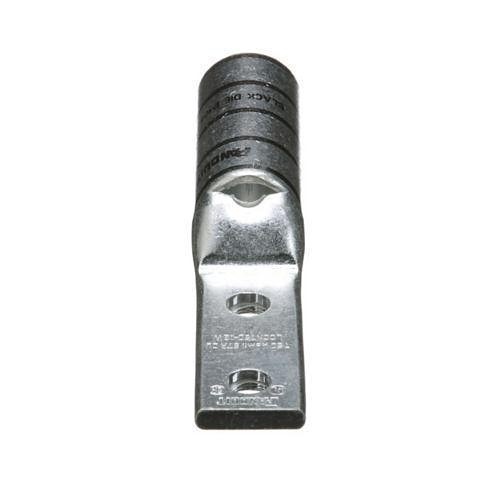

Panduit LCCN500-12W-6 Compression Connector Lug, 2-Hole, Narrow, 500kcmil, Copper
LCCN500-12W-6
|P9-CN50012W6
Shop All Panduit
Panduit LCCN500-12W-6 Compression Connector Lug, 2-Hole, Narrow, 500kcmil, Copper
LCCN500-12W-6 | P9-CN50012W6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCCN500-12W-6 Tin Plated Copper Compression Lug, two-hole, long barrel, narrow tongue has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin plated copper compression lug
- Two-hole, narrow tongue design
- Long barrel for multiple crimps and wire pull-out strength
- Color-coded barrels with Panduit and competitor die index numbers
- Inspection window for visual conductor insertion assurance
- UL Listed and CSA Certified to 35 KV
- Temperature rated to 90°C
General Information
Name: Panduit LCCN500-12W-6 Compression Connector Lug, 2-Hole, Narrow, 500kcmil, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056857698
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CN50012W6 Brand Name Panduit Manufacturer Part Number LCCN500-12W-6
Length 6.13"
