Panduit LCC6-14JAW-L Compression Connector Lug, 2-Hole, #6AWG, Copper
LCC6-14JAW-L | P9-CC614JAWL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

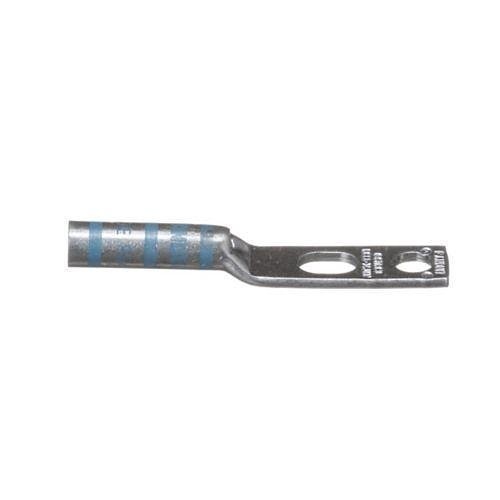

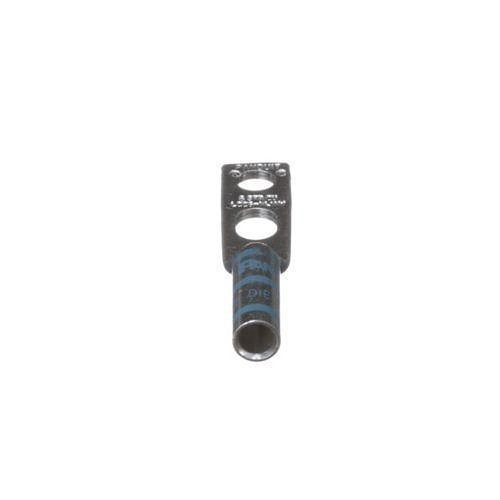

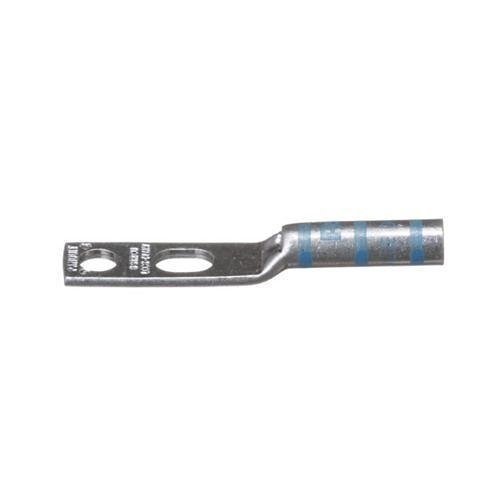

Two-hole, long barrel lug with window, #6 AWG wire, 1/4" stud hole, .50" - .63" hole spacing.
Main Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV** and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit Uni-Die™ Dieless Crimping Tools?
- Tested by Telcordia - meets NEBS Level 3
- Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
- Available with NEMA hole sizes and spacing
General Information
Name: Panduit LCC6-14JAW-L Compression Connector Lug, 2-Hole, #6AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983648337
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CC614JAWL Brand Name Panduit Country of Origin MX Manufacturer PANDUIT CORP Manufacturer Part Number LCC6-14JAW-L Product Name Code Conductor, Two-Hole, Long Barrel with Window Lug Product Type Terminal Connector
Color Blue Material Copper Width 0.50"
Length 2.50"
Environmentally Friendly Yes
