Panduit LCAX350-38-6 Compression Connector Lug, 1-Hole, 350kcmil, Copper
LCAX350-38-6
|P9-CAX350386
Shop All Panduit
Panduit LCAX350-38-6 Compression Connector Lug, 1-Hole, 350kcmil, Copper
LCAX350-38-6 | P9-CAX350386
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

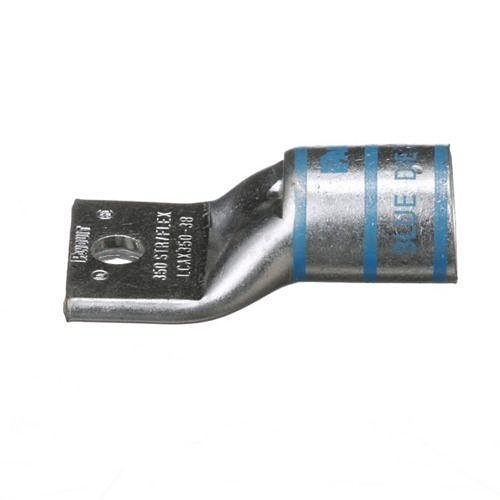

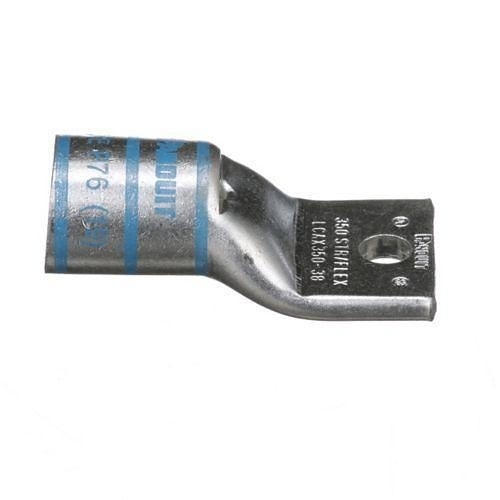

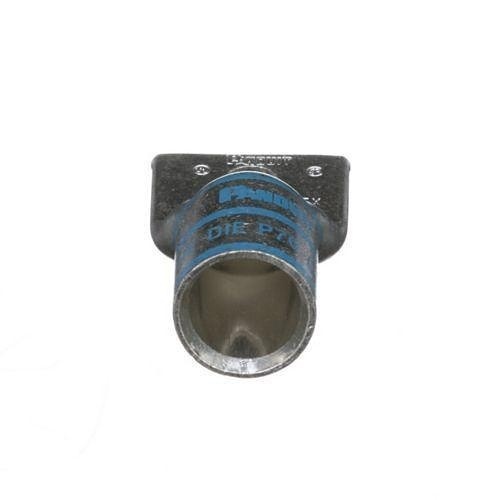

The LCAX350-38-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
Main Features
- Tin-plated copper compression lug for corrosion resistance
- One-hole design with standard barrel
- Color-coded barrels marked with Panduit and competitor die index numbers
- Inspection window for visual confirmation of full conductor insertion
- UL Listed and CSA Certified to 35 kV
- Temperature rated to 90°C
- Compatible with appropriate crimp dies indicated by die index numbers
General Information
Name: Panduit LCAX350-38-6 Compression Connector Lug, 1-Hole, 350kcmil, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983435883
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CAX350386 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCAX350-38-6 Product Name Terminal Connector Product Type Terminal Connector
Material Copper
Length 2.10"
Environmentally Friendly Yes Features Angled Connector
