Product Overview

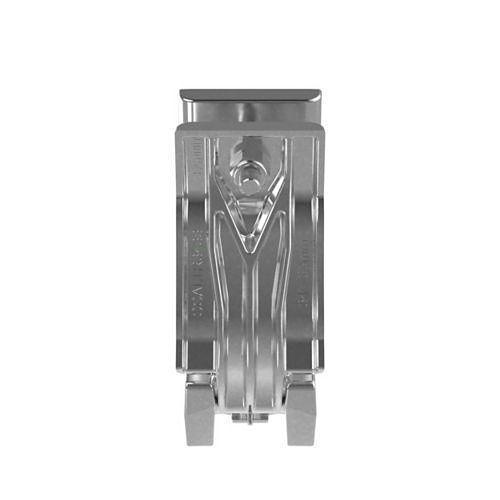

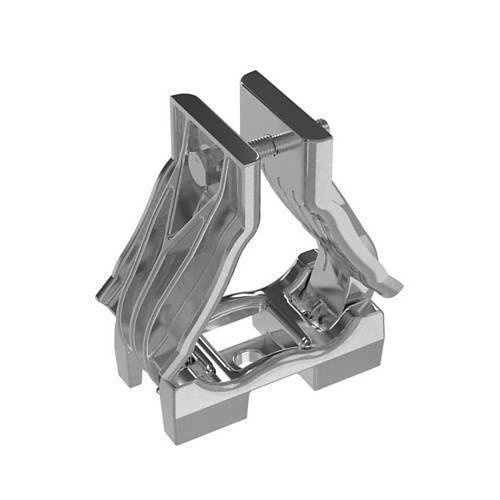

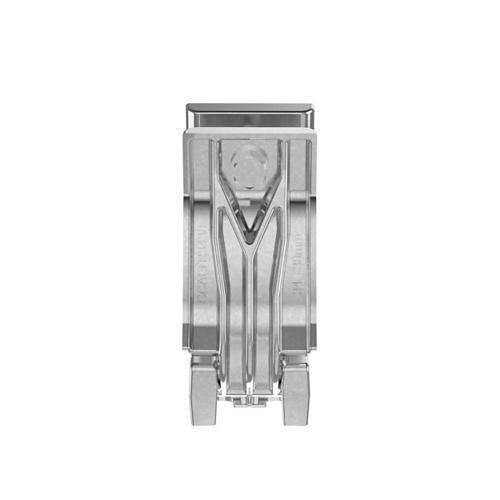

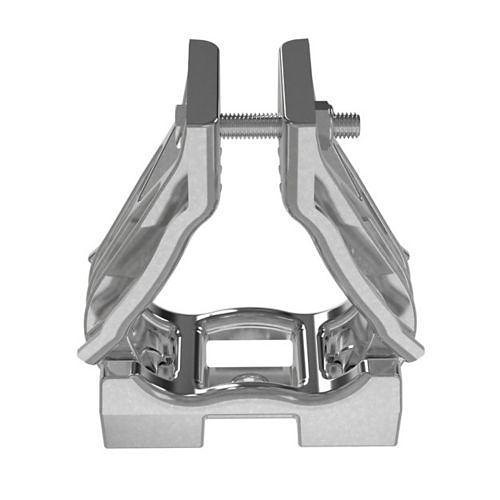

The CCALTR3438-X Aluminum Trefoil Cable Cleat is ideal for medium to high short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914;2015, tested up to 114kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 34-38mm and installs direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Insulating spacers and washers sold separately for protection against galvanic corrosion.
Main Features
- Compatible with cable diameter of 34-38mm
- Certified to IEC 61914;2015
- Tested up to 114kA peak fault current
- Retains cables during short circuit faults
- Suitable for medium to high short circuit faults
- Ideal for less corrosive environments
- Installs direct to cable tray rung via fixing hole and user-supplied M8 bolt
- Includes aluminum construction
General Information
Name: Panduit CCALTR3438-X Cable Cleat, Trefoil Configuration
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056755390
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-ALTR3438X Brand Name Panduit Manufacturer Part Number CCALTR3438-X
Material Aluminum
Indoor/Outdoor Indoor, Outdoor
