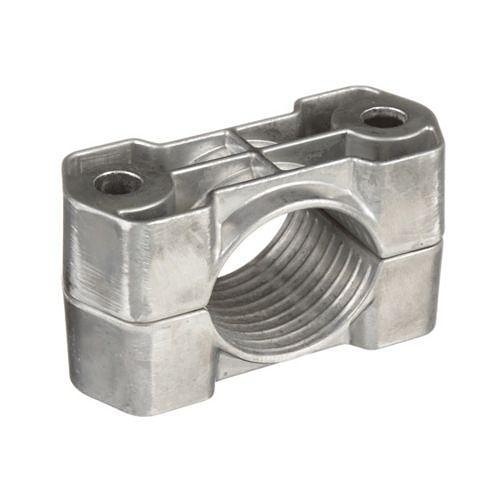

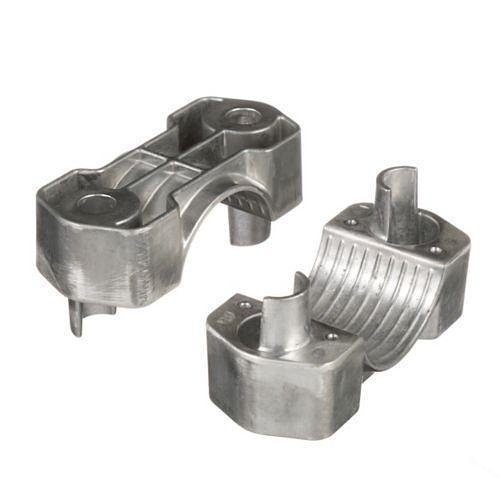

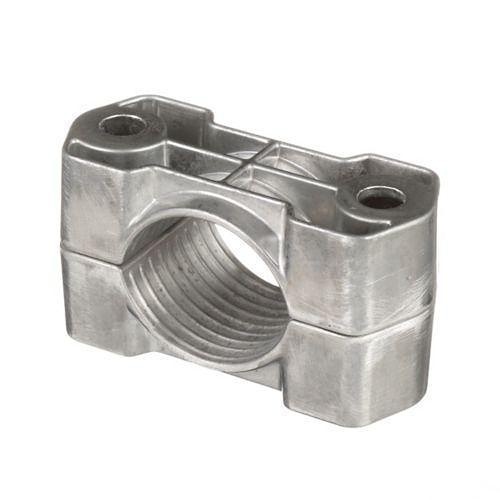

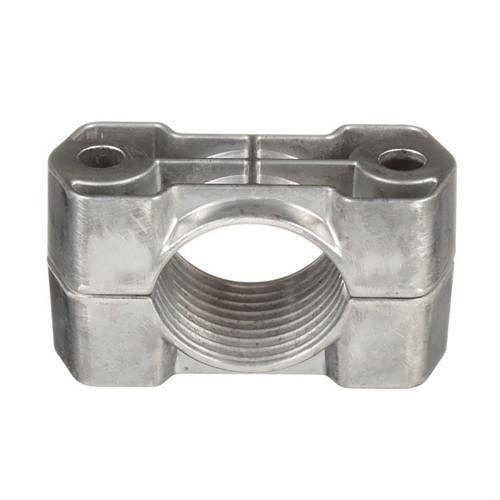

Panduit CCAL2H8397-X Cable Cleat, 2-Hole Clamp Type, Aluminum
CCAL2H8397-X|P9-AL2H8397X
Panduit CCAL2H8397-X Cable Cleat, 2-Hole Clamp Type, Aluminum
CCAL2H8397-X|P9-AL2H8397X
Panduit
Panduit CCAL2H8397-X Cable Cleat, 2-Hole Clamp Type, Aluminum
CCAL2H8397-X | P9-AL2H8397X
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The CCAL2H8397-X Two-Hole Aluminum Cable Cleat is ideal for medium to high short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914;2015, tested up to 131kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 83-97mm and installs direct to the cable tray rung via fixing holes and user-supplied M10 bolts. Insulating spacers and washers sold separately for protection against galvanic corrosion.
General Information
Name:Panduit CCAL2H8397-X Cable Cleat, 2-Hole Clamp Type, Aluminum
Category:Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code:613056747470
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-AL2H8397X Brand Name Panduit Manufacturer Part Number CCAL2H8397-X
Material Aluminum
