Panduit DNF10-250FIMB-Q Pan-Term Loose Piece Disconnect, Blue
DNF10-250FIMB-Q | P9-0250FIMQ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

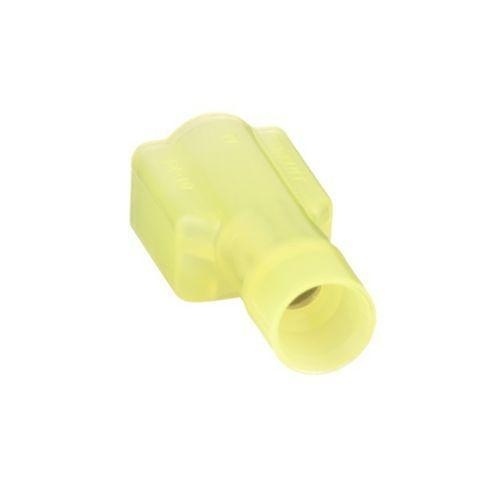

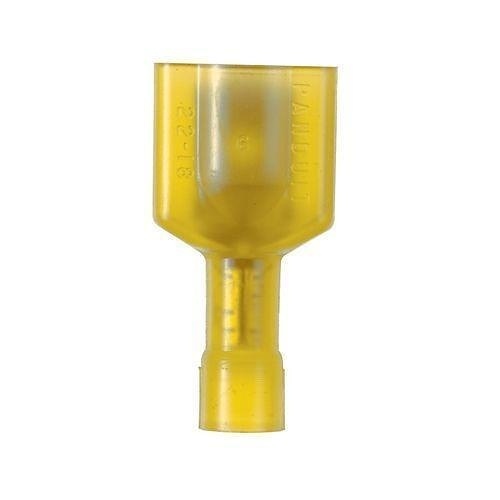

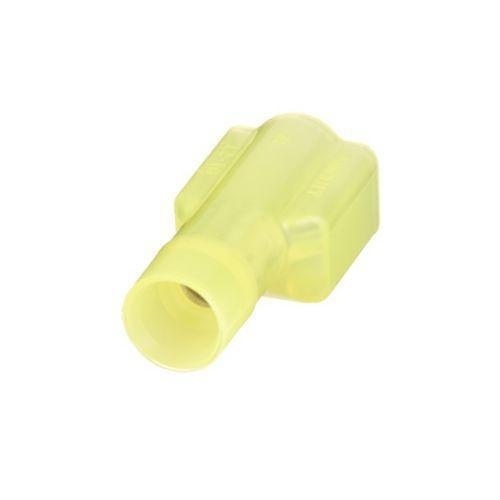

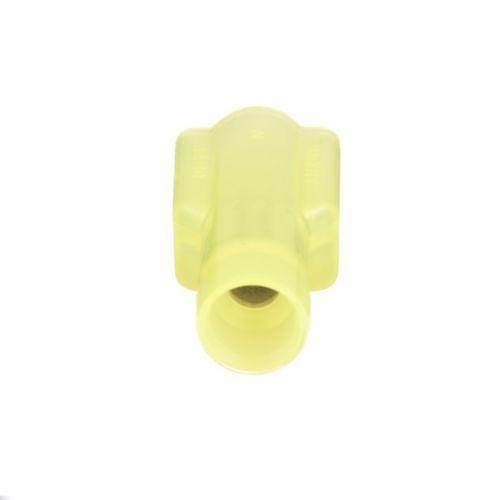

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, oversized nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 25.
Main Features
- Features terminal connector
- Nickel contact plating
General Information
Name: Panduit DNF10-250FIMB-Q Pan-Term Loose Piece Disconnect, Blue
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 74983119028
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-0250FIMQ Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number DNF10-250FIMB-Q Packaged Quantity 25 Product Name Terminal Connector Product Type Terminal Connector
Color Yellow Material Copper Width 0.50"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Flame Retardant
