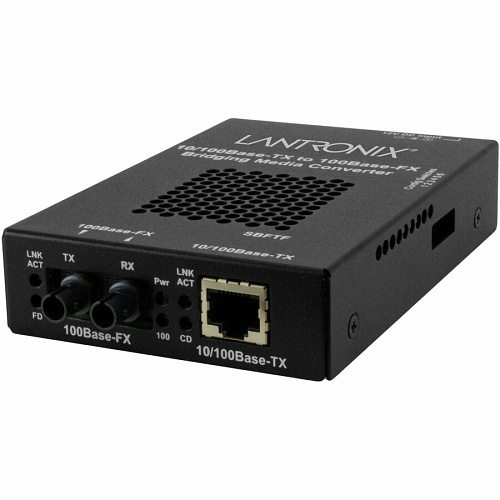

Lantronix SBFTF1011-105-LA SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, ST MM, 3.3V, LA
SBFTF1011-105
|P6-SBFTF5LA
Shop All Lantronix
Lantronix SBFTF1011-105-LA SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, ST MM, 3.3V, LA
SBFTF1011-105 | P6-SBFTF5LA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Stand-alone Fast Ethernet Media and Rate Converter 10/100Base-TX to 100Base-FX
? The SBFTF Series is a stand-alone media converter that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Main Features
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault (FEF) Detection
- Automatic Link Restoration Extend network distance up to 120km
- Bridging devices will provide conversion and integration solutions for half and full-duplex environments
- 10 Mbps or 100 Mbps on TP port
- Half or full-duplex on all ports including fiber
General Information
Name: Lantronix SBFTF1011-105-LA SBFTF Series Media Converter 10/100BTX to 100BFX, 1x9, ST MM, 3.3V, LA
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 648177025213
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SBFTF5LA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SBFTF1011-105-LA Package Type Bulk Packaged Quantity 1 Product Model SBFTF1011-105 Product Name SBFTF1011-105 Transceiver/Media Converter Product Series SBFTF Product Type Transceiver/Media Converter
Fiber Optic Mode Multimode Maximum Distance 1.24mi Media Type Supported Optical Fiber, Twisted Pair
TAA Compliant Yes
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of ST Ports 1
Network Technology 10/100Base-TX, 100Base-FX, 100Base-T, 10Base-T
Ethernet Technology 100 Mbps (Fast Ethernet)
Depth 4.80" Height 1.00" Weight 2.00lb Width 3.30"
Power Source AC Power
Threads Per Inch (TPI) 32
Limited Warranty Lifetime
Environmentally Friendly Yes Package Contents SBFTF1011-105 Transceiver/Media Converter Power Supply - Latin America
