Image of P6-POEB395EU
Shop all Lantronix

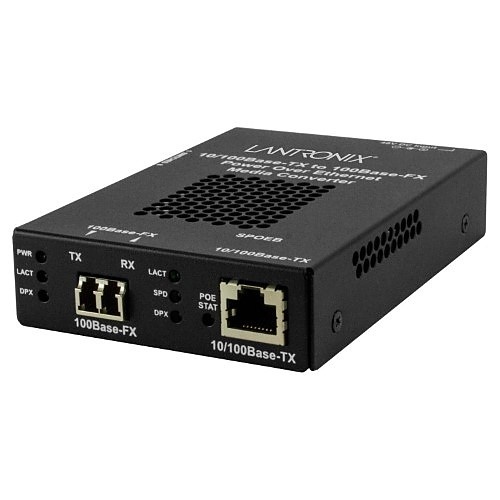

Lantronix SPOEB1039-105-EU 10/100BASE-TX RJ45 Power Over Ethernet to 100BASE-FX, Multi-Mode LC, 2km

SPOEB1039-105|P6-POEB395EU
Shop all Lantronix

Lantronix SPOEB1039-105-EU 10/100BASE-TX RJ45 Power Over Ethernet to 100BASE-FX, Multi-Mode LC, 2km

SPOEB1039-105|P6-POEB395EU

Sign In for Dealer Pricing

Become an ADI Customer
Lantronix

Lantronix SPOEB1039-105-EU 10/100BASE-TX RJ45 Power Over Ethernet to 100BASE-FX, Multi-Mode LC, 2km

SPOEB1039-105 | P6-POEB395EU

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SPOEB Series is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection.Lantronix AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power, providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under- Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize, also known as Powered Device Reset.The PoE converter is fully compatible with devices that comply with the IEEE 802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.

Main Features

  • External AC power supply
  • IEEE 802.3af Power-over-Ethernet Compatible
  • 48V DC PSE Output Voltage
  • Signal Pair or Spare Pair Power Insertion
  • PD Detection Signature
  • Over-Current Protection and Under-Current Detection
  • Powered Device Reset
  • Switch selectable and port settings
  • Minimum Load Sensing
  • Fault Protection Input

    • General Information

    Name:Lantronix SPOEB1039-105-EU 10/100BASE-TX RJ45 Power Over Ethernet to 100BASE-FX, Multi-Mode LC, 2km
    Category:Lantronix, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:648177041077
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Manufacturer Brochure
    Additional Resources
