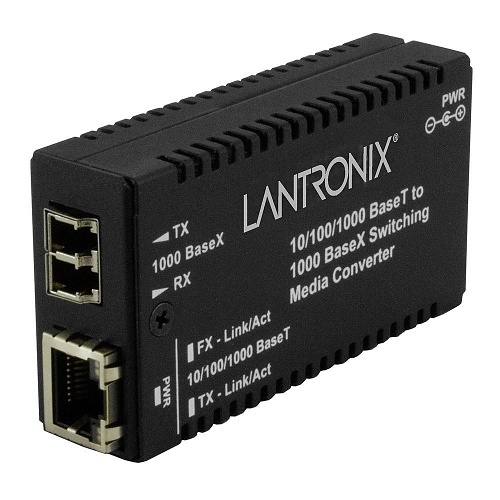

Lantronix M/GE-PSW-SX-01(LC)-AR Mini Media Converter 10/100/1000B-T to 1000B-SX
M/GE-PSW-SX-01(LC)
|P6-MGPWXLCAR
Lantronix M/GE-PSW-SX-01(LC)-AR Mini Media Converter 10/100/1000B-T to 1000B-SX
M/GE-PSW-SX-01(LC) | P6-MGPWXLCAR
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Mini Gigabit Ethernet Media Converter
10/100/1000Base-T to 1000Base-SX/LX
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Unit & Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Active Link Pass Through
- Automatic Link Restoration
- Space saving design
- Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
- Jumbo Frame (up to 10,240 Bytes)
- USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
General Information
Specifications
ADI Part Number P6-MGPWXLCAR Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number MGEPSWSX01LCAR Packaged Quantity 50 Product Model M/GE-PSW-SX-01(LC) Product Name M/GE-PSW-SX-01(LC) Transceiver/Media Converter Product Series M/GE-PSW Product Type Transceiver/Media Converter
Fiber Optic Cable Standard 50/125 µm, 62.5/125 µm Fiber Optic Mode Multimode Maximum Distance 1804.46' Media Type Supported Optical Fiber, Twisted Pair Power Consumption 3.1500W
TAA Compliant Yes
Network (RJ-45) Yes Number of LC Ports 1 Number of Network (RJ-45) Ports 1 Number of Ports 2
Fiber Optic Wavelength 850.00nm Network Technology 10/100/1000Base-T, 1000Base-SX, 1000Base-T, 100Base-T, 10Base-T
Ethernet Technology 10 Gbps
Depth 3.30" Height 0.90" Weight 2.00lb Width 1.80"
Input Voltage 12V DC Power Source AC Power
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - M/GE-PSW-SX-01(LC) Transceiver/Media Converter
- Power Supply - Argentina
