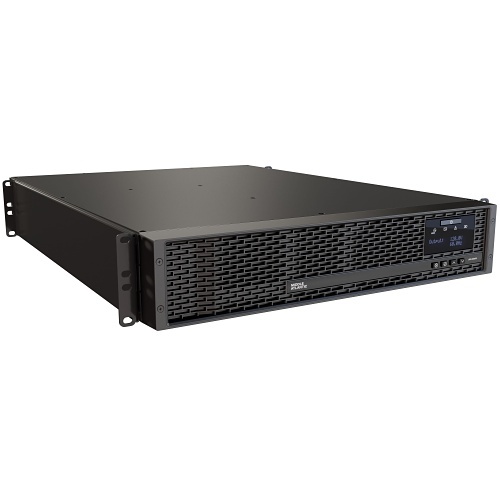

Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
UPX-2000R-2
|NO-UPX2000R2
Acheter Middle Atlantic by Legrand
Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
UPX-2000R-2 | NO-UPX2000R2
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
NEXSYS is built on a promise that we’ve kept for over two decades – more than half the life of the company – that our power products are designed, engineered, and built for AV. It’s one thing to say it, it’s another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you’d expect. 2000VA and 20 amp battery backup. 8 Outlet UPS backup with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the “4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don’t like our default settings - we won’t be offended. Set reminders or notifications for things like battery replacement, etc. Via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6’ (1.8m) IEC power cord. Name, address, and date of birth, please? Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn’t up to your standards. Swap it like it’s hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
Principales caractéristiques
- 8 outlets-Bank Controlled option with (2) 4 outlet banks-Individually Controlled options for all 8 outlets via RackLink
- All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Everything is assembled and connected right from the factory saving you time during your installations-Rack ears are pre-installed with the"4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail-The battery is already connected so just plug it in
- The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS
- Set reminders or notifications for things like battery replacement, etc. Via email or on the UPS

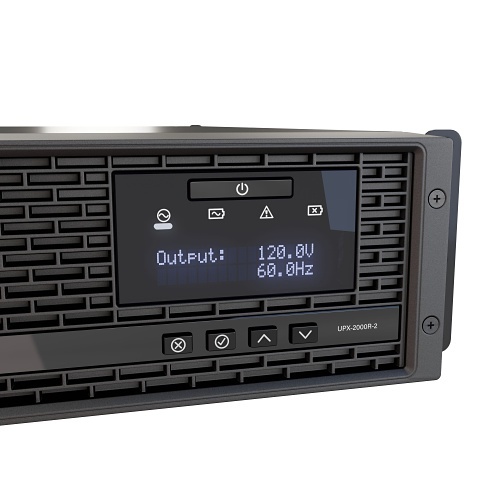

- Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address
- Hot swappable battery from the front access panel for easy service with out disrupting the system
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required-All UPSs include a 6' (1.8m) IEC power cord
- Energy Star Certified
Renseignements généraux
Name: Middle Atlantic UPX-2000R-2 NEXSYS Series 20A UPS Battery Backup Power System with Bank Outlet Control, 2000VA, 2U
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, UPS
UPC Code: 656747395598
Country of Origin: China. Country of origin is subject to change.
Spécifications
ADI Numéro du produit NO-UPX2000R2 Application/utilisation Couloirs, Desktop Code fabricant UPX-2000R-2 Fabricant Legrand Group Gamme NEXSYS Marque Middle Atlantic by Legrand Modèle de produit UPX-2000R-2 Nom de produit NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS Pays d'origine CN Protections contre les surcharges Yes Quantité emballée 100 Secteur Professional AV Série de produit UPX Type de produit Line-interactive UPS
AVR Yes Détail du réceptacle 8 x NEMA 5-20R Nombre de batteries/piles 4 Nombre de prises 8 Protection contre les surcharges Yes Remplaçable à chaud Yes Taille de la batterie Proprietary Battery Pack Temps d'automonie/ sauvegarde (chargée à moitié) 10.0min Temps d'automonie/ sauvegarde (pleine charge) 3.0min Temps de transfert 10.00ms Tension de sortie 110V AC, 120V AC, 127V AC Type de Prise/Module Enfichable NEMA 5-20R
Capacité de la batterie 9.00Ah Caractéristiques de la batterie Maintenance-free, Sealed Composition chimique de la batterie Lead Acid Système de tension CC 48 Temps de recharge de la batterie 8.00hr Tension de batterie 12.00V
Certifications CSA, RoHS, TUV Conforme aux normes TAA No Energy Star Yes
Indicateurs de statut Yes
Émission sonore 50.0dB Humidité Active 0-95 % Temperatura de funcionamiento (T-T) 32-104°F Temperature Maximale d'Opération 104.00°F
Port série Yes
Alarme Battery Disconnected, Fault, Low Battery, On Battery, Overload Gestion de réseau SNMP, SNMPv3, SSH, Telnet
Couleur Bleu Format Rack Mount Hauteur 3.46" Profondeur 22.00"
Classification des surtensions 1000J Fréquence de Sortie 60Hz Fréquence d'Entrée 60Hz Taux de tension 120V AC, 48V DC Tension d'entrée 120V AC Type de connecteur/prise NEMA 5-20P Type d'onde Onde Sinusoïdale Pure
Type de montage Rack Mount
Garantie limitée 2-Year, 3-Year Informations complémentaires sur la garantie 2 Years Battery
Caractéristiques NEXSYS UPS Certification environnementale ENERGY STAR 2.0, REACH, RoHS Contenu de l'emballage - NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
- 6' (1.8m) IEC Power Cord
Respectueux de l'environnement Yes
