NEUTRIK

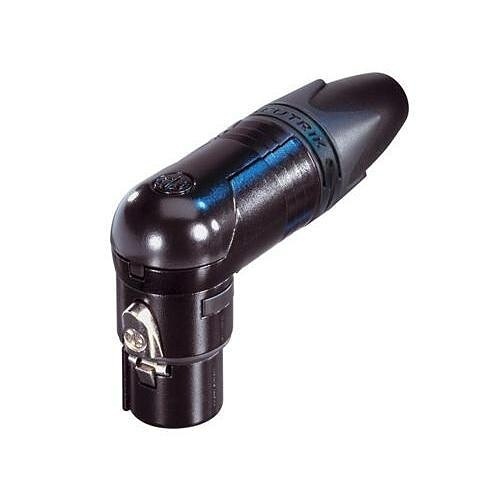

NEUTRIK NC5FRX-BAG RX5 PIN Female Connector, Black/Silver
NC5FRX-BAG | NM-NC5FRXBAG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
5 pole right angle female cable connector, black metal housing, silver contacts. The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Main Features
General Information
Name:NEUTRIK NC5FRX-BAG RX5 PIN Female Connector, Black/Silver
Category:NEUTRIK, Pro AV, Commercial Connector Cables, Pro Cable Adapters
UPC Code:
Country of Origin:Liechtenstein. Country of origin is subject to change.
Specifications
ADI Part Number NM-NC5FRXBAG Manufacturer Part Number NC5FRX-BAG
Connector Plating Nickel Contact Plating Brass
Connector Type XLR
Color Black
Voltage Rating 50V
Features 5 selectable cable outlet positions, Additional ground spring contacts for better shell ground continuity, Boot with polyurethane gland gives high protection to cable bending stresses, Coloured rings and boots available for coding or identification, Extra slim right-angle connector, Female connector with improved solid metal latch which is larger and easier to handle, Female contact incorporates a solder barrier to prevent solder running into the contact mating area, Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, Sleek and ergonomic design - valuable and handy, Unique cage design of female contact for low contact resistance and high integrity
