Product Overview

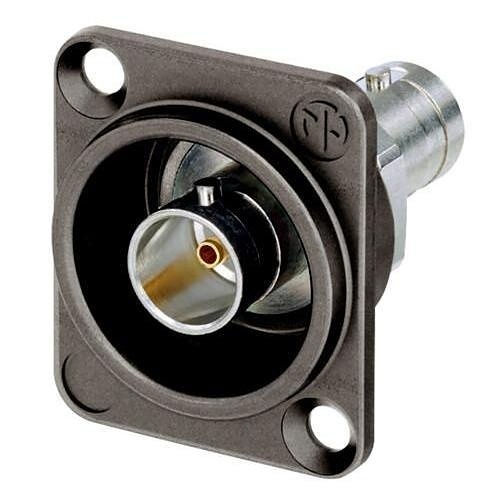

Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing. Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.
Main Features
General Information
Name:Neutrik NBB75DFGX 75 Ohm BNC Feedthrough Panel Mount Receptacle, Isolated
Category:NEUTRIK, Data Comm & Networking, Cable Connectors, Coaxial Cable Connectors & Splitters
UPC Code:
Country of Origin:Liechtenstein. Country of origin is subject to change.
Specifications
ADI Part Number NM-NBB75DFGX Brand Name NEUTRIK Manufacturer Part Number NBB75DFGX
Contact Plating Gold Impedance 75 ohms
Connector Type BNC
Voltage Rating 50V

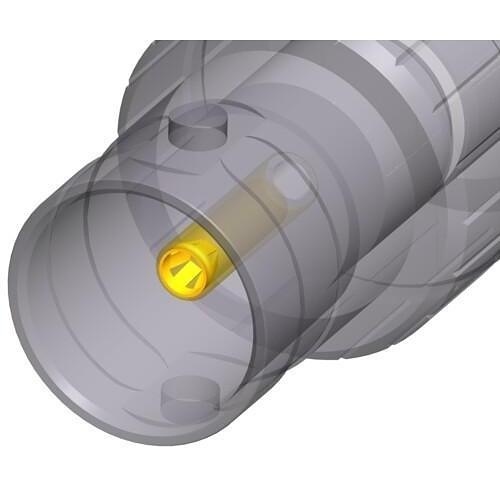

Features Color coding possible, Fully compatible with conventional BNC cable connectors, Grounded panel mount, Optimized gold plated cage type center contact for UHD signals as 4K or 8K, Standard D-shape housing provides flush mounting and protection from damage, Swiss antraloy plating
