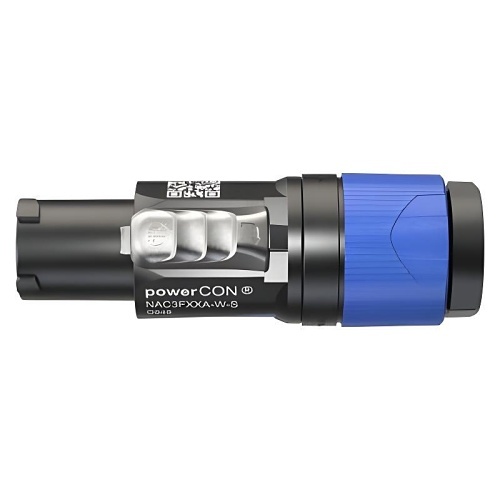

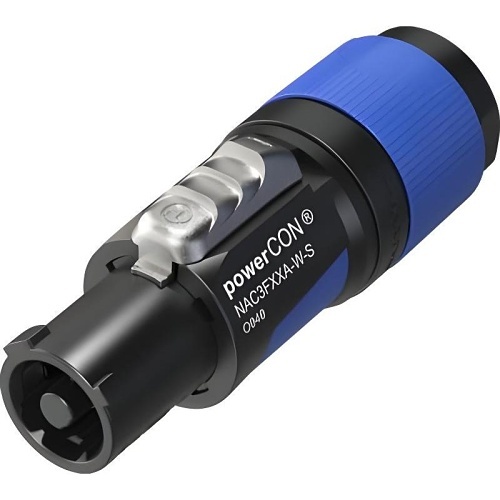

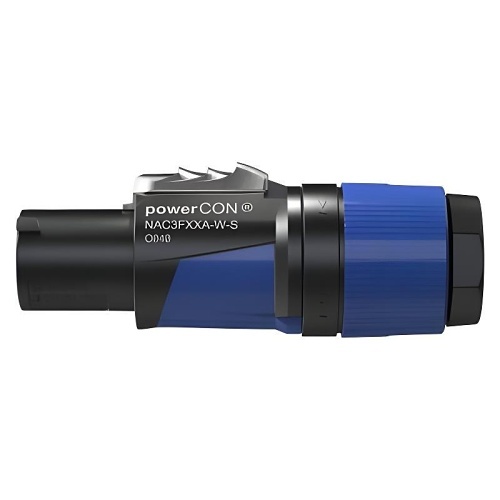

NEUTRIK NAC3FXXA-W-S a Single Phase Lockable Power Connector with Circuit Breaking Cable End, Blue
NAC3FXXA-W-S
|NM-NAC3FXAWS
Shop All NEUTRIK
NEUTRIK NAC3FXXA-W-S a Single Phase Lockable Power Connector with Circuit Breaking Cable End, Blue
NAC3FXXA-W-S | NM-NAC3FXAWS
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Main Features
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component molded housing
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
- Superior NEUTRIK quality standard, extremely robust and reliable
- Improved kink protection by two-component bushing
General Information
Name: NEUTRIK NAC3FXXA-W-S a Single Phase Lockable Power Connector with Circuit Breaking Cable End, Blue
Category: NEUTRIK, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number NM-NAC3FXAWS Brand Name NEUTRIK Manufacturer Part Number NAC3FXXA-W-S Product Line powerCON
Color Blue
