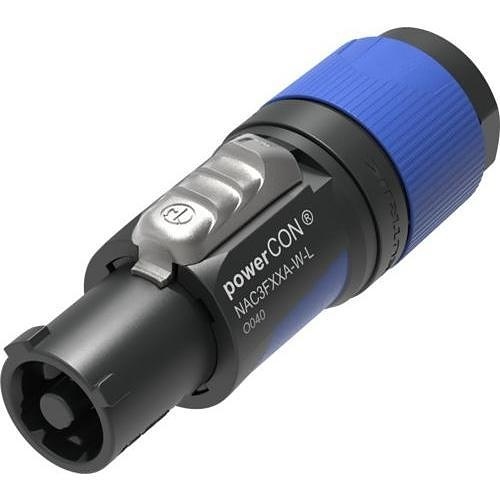

Neutrik NAC3FXXA-W-L powerCON Lockable Power Connector for 10-16mm Diameter Cables, Blue

Name: Neutrik NAC3FXXA-W-L powerCON Lockable Power Connector for 10-16mm Diameter Cables, Blue
Availability: In Stock

NAC3FXXA-W-L|NM-NAC3FXAWL

Acheter NEUTRIK

Neutrik NAC3FXXA-W-L powerCON Lockable Power Connector for 10-16mm Diameter Cables, Blue

NAC3FXXA-W-L|NM-NAC3FXAWL

Se connecter prix revendeur

Devenir client ADI

NEUTRIK

Neutrik NAC3FXXA-W-L powerCON Lockable Power Connector for 10-16mm Diameter Cables, Blue

NAC3FXXA-W-L | NM-NAC3FXAWL

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu

Spécifications

Documents

Aperçu

IEC EN 60320-1 compliant. Accepted for cord sets as per IEC EN 60799:2021. Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Principales caractéristiques

Easy and reliable twist lock system

Improved kink protection by two-component bushing

Superior NEUTRIK quality standard, extremely robust and reliable

Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm

Ergonomic design with slip-proof two-component molded housing

Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing

Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating

IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1

Renseignements généraux

Nom:Neutrik NAC3FXXA-W-L powerCON Lockable Power Connector for 10-16mm Diameter Cables, Blue

Category:NEUTRIK, Pro AV, Commercial Connector Cables, Pro Microphone Cables

UPC Code:

Country of Origin:Liechtenstein. Country of origin is subject to change.

Spécifications

ADI Numéro du produit

NM-NAC3FXAWL

Code fabricant

NAC3FXXA-W-L

Revêtement des contacts

Copper alloy

Indice de protection

IP20

Caractéristiques

Easy and reliable twist lock system, Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing, Ergonomic design with slip-proof two-component molded housing, IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 UL US 498 / UL CA 498, Improved kink protection by two-component bushing, Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating, Superior NEUTRIK quality standard, extremely robust and reliable, Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm

Certification environnementale

Respectueux de l'environnement

Yes
