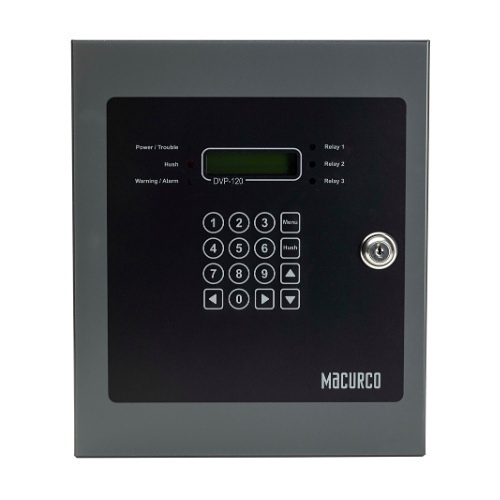

Macurco DVP-120B Detection Ventilation Control Panel, Digital with BACnet MSTP Output
DVP-120B|MA-DVP120B
Macurco DVP-120B Detection Ventilation Control Panel, Digital with BACnet MSTP Output
DVP-120B|MA-DVP120B
Macurco
Macurco DVP-120B Detection Ventilation Control Panel, Digital with BACnet MSTP Output
DVP-120B | MA-DVP120B
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
Detection Ventilation Control PanelsThe Macurco controller family has a variety of options to meet the needs of your facility. These controllers in conjunction with Macurco gas detectors provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems are easily configured making installation hassle-free. The control panel series is designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With mutiple control panel options Macurco will help you find the right controller for your specific application.Key Features 12 analog (4-20mA) sensor connections DVP-120M/B : 87 digital sensor connections (RS-485) + 12 analog (4-20mA) sensor connections Three 10A SPDT fan / alarm relays Two 24VDC drivers for Horn / Strobe Compatible with Macurco 6-Series Auto recognizes Macurco detectors Settings are customizable, default is per OSHA DVP-120B : BACnet MSTP output
Principales caractéristiques
Renseignements généraux
Nom:Macurco DVP-120B Detection Ventilation Control Panel, Digital with BACnet MSTP Output
Category:Macurco, Intrusion, Alarm Control Panels & Keypads, Control Panels
UPC Code:
Country of Origin:United States. Country of origin is subject to change.
Spécifications
ADI Numéro du produit MA-DVP120B Code fabricant 70-2900-0402-3 Fabricant Aerionics, Inc Gamme Commercial Marque Macurco Modèle de produit DVP-120B Nom de produit DVP-120B Gas Alarm Control Panel Série de produit DVP Type de produit Gas Alarm Control Panel
Nombre de relais tolérés 3 Technologie batterie Wired
Type d'Affichage LCD
Couleur Gray Poids 6.50lb
Tension d'entrée 120V AC, 230V AC
Garantie Limitée 2-Year
Caractéristiques Built-in Keypad Informations complémentaires - Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Ambient Humidity: 0% to 95% RH non-condensing
- Mounting: Mounting holes in each corner
Pays d'origine US
