Lynn Electronics S-SA1SA1-SMI3-075F HyperDrop Micro-Armored Fiber Cable, SC/APC SIMPLEX - SC/APC SIMPLEX, 75'

S-SA1SA1-SMI3-075F

LR-SSA1SA175

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Lynn Electronics

Lynn Electronics S-SA1SA1-SMI3-075F HyperDrop Micro-Armored Fiber Cable, SC/APC SIMPLEX - SC/APC SIMPLEX, 75'

S-SA1SA1-SMI3-075F | LR-SSA1SA175

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

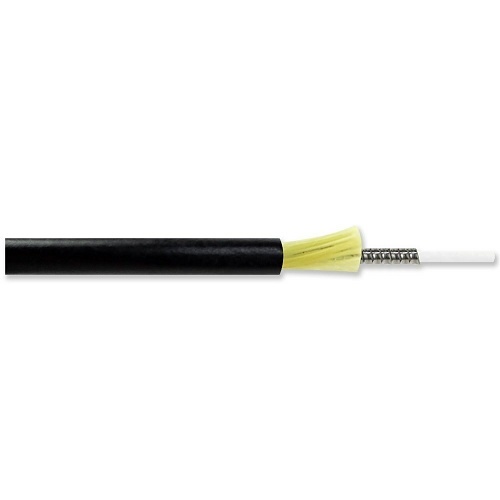

Micro-armored internal construction designed to protect cable in hazardous areas.

Main Features

Simplex (one strand) OS2 9/125um single mode fiber

Internal stainless steel micro-armor with an overall cable diameter of 3mm

Indoor/outdoor water-rated LSZH cable jacket

Male SC/APC to Male SC/APC simplex connectors

Corning SMF-28 Ultra fiber

75' (23m) cable length

10mm minimum bend radius

Rated for >500 mating cycles

Meets water penetration requirements of Telcordia GR-20-CORE

RoHS and REACH compliant

General Information

Name: Lynn Electronics S-SA1SA1-SMI3-075F HyperDrop Micro-Armored Fiber Cable, SC/APC SIMPLEX - SC/APC SIMPLEX, 75'

Category: Lynn Electronics, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords

UPC Code:

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number LR-SSA1SA175 Brand Name Lynn Electronics Manufacturer Lynn Electronics Corporation Manufacturer Part Number S-SA1SA1-SMI3-075F Product Line HyperDrop Product Model S-SA1SA1-SMI3-075F Product Name Micro-armored Fiber Patch Cable Product Series Hammer Product Type Fiber Patch Cable

: Armored Yes Core/Cladding Diameter 9/125 µm Fiber Count 1 Fiber Optic Mode Single-mode Jacket Material LSZH

: Connector Type SC/UPC

: Cable Length 900"

: Environmental Certification RoSH Environmentally Friendly Yes

Documents and Resources

Download All Documents

Product Data Sheet
