Dottie
Dottie W12512 Anchor, 1/2" 5-1/2" Wedge Anchor
W12512 | LH-W12512
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

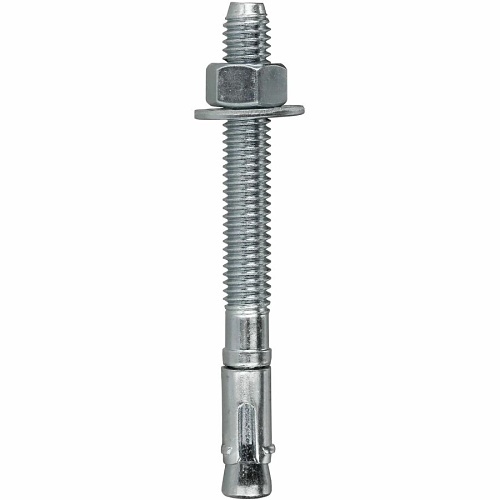

Wedge Anchors are manufactured with a carbon steel body and expansion clip, and are designed for normal and lightweight concrete. These fully threaded expanding anchors are ICC-ESR listed for seismic zones, cracked, and uncracked concrete. They feature a pilot on the hammered end to prevent first thread damage and are a non-bottom-bearing anchor. Common applications for use include structural connections, cable trays, strut, fire sprinklers, and piping supports in concrete substrate. For installation instructions and weight loads, reference the technical data sheet.
Main Features
General Information
Name:Dottie W12512 Anchor, 1/2" 5-1/2" Wedge Anchor
Category:Dottie, Tools & Hardware, Fasteners, Anchors
UPC Code:781002593164
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number LH-W12512 Brand Name Dottie Connecting Thread Type UNC Manufacturer Part Number W12512 Packaged Quantity 50 Product Model W12512 Product Type Expansion Anchor
Material Carbon Steel
Fastener Type Anchor Length 5.5" Maximum Fractional Diameter 0.50" Threads Per Inch (TPI) 13
Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes
