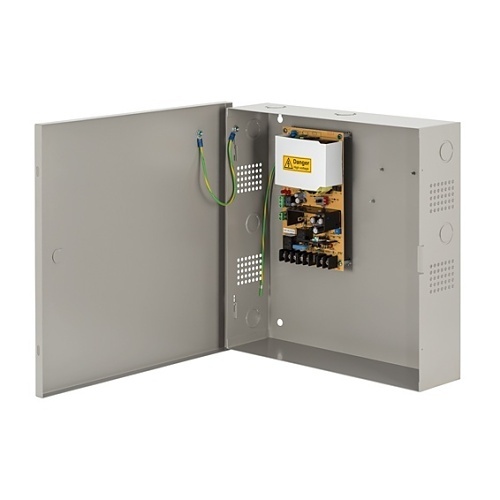

Locknetics LP250RDB4 Power Supply 2.5A with Enclosure Option Board
LP250RDB4|LC-LP250RDB4
Locknetics LP250RDB4 Power Supply 2.5A with Enclosure Option Board
LP250RDB4|LC-LP250RDB4
Locknetics
Locknetics LP250RDB4 Power Supply 2.5A with Enclosure Option Board
LP250RDB4 | LC-LP250RDB4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Locknetics LP250RDB4 Power Supply & Battery Charger - UL294/603 Class 2, 120V AC, 1.1-2.0A, 12/24VDC, RDB4 Board Included
Also known as: LC-LP250RDB4
The Locknetics LP250RDB4 is a UL294, UL603, Class 2, FCC Part 15, CSFM, RoHS, and CSA-C22.2 No. 205 certified power-limited power supply and battery charger that is designed to convert 120VAC/60Hz input into field-selectable 12VDC or 24VDC Class 2 rated outputs (one continuous, one switchable). It is ideal for applications with UL listing requirements and has a 1.5A at 12 or 24VDC output rating, a built-in battery charging circuit, a protective cover over the AC components, and keylock included. The LP250RDB4 is 13" H x 12 5 8" W x 3 1 4" D and has eight 1 2" or 3 4" knockouts and comes with the RDB4 board for easy power management.
Main Features
General Information
Name:Locknetics LP250RDB4 Power Supply 2.5A with Enclosure Option Board
Category:Locknetics, Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards
UPC Code:043156085767
Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number LC-LP250RDB4 Manufacturer Part Number LP250RDB4
Country of Origin TW
