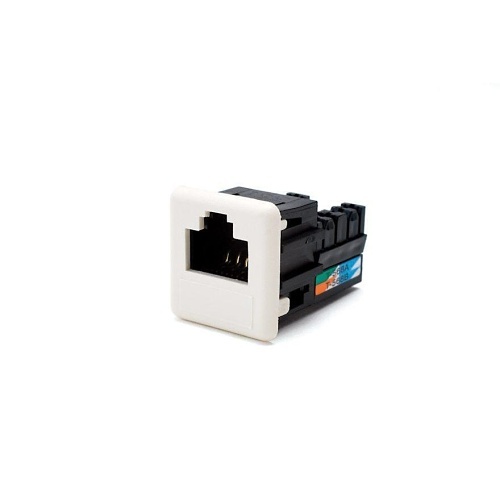

OCC UMJA6 CAT6 UMJ Modular Jack with 110-Style IDC Termination, Voice/Data Applications
UMJA6 | JQ-UMJA6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
OCC's Category 6 jacks are world-class performers with patented printed circuit board technology to provide true Category 6 component performance on all pair combinations. With a standard 110- style punch-down termination, our Category 6 UMJ style jacks are manufactured to comply with TIA component performance requirements and are ETL Verified to TIA568-C.2 Cat 6 standards.
Main Features
- Meets IEC 60603-7 requirements
- All other applications developed for operation over Category 6 cabling
- 110-style IDC contacts meet TIA 568-C.2 requirements
- ETL Verified to TIA 568-C.2 Cat 6
- Backward compatible, Cat 3, 5, and 5e compliant
- Full 6-position, modular plug compatible with bezel
- Universal T568A/B wiring for easy installation
- Secure mounting locks jack into faceplate
- Fits all OCC UMJ faceplates and surface mount boxes
- Insulation resistance- 500MΩ minimum
General Information
Name: OCC UMJA6 CAT6 UMJ Modular Jack with 110-Style IDC Termination, Voice/Data Applications
Category: OCC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 769555036734
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number JQ-UMJA6 Brand Name OCC Manufacturer Part Number UMJA6
Environmental Certification ANSI / TIA-568-C.2 CATEGORY 6, ANSI / TIA-968-A, CSA, IEC 60603-7, RoHS, UL Features 110-style IDC contacts meet TIA 568-C.2 requirements, Available with 20 labeling and color options, Backward compatible, Cat 3, 5 and 5e compliant, Compliant with Power over Ethernet (PoE+) requirements, DC current rating- 1.5A per conductor at 20°C ambient de-rated to 0.75A at 60°C ambient, Dielectric withstand -1000 VAC RMS, AC 60Hz or 1414V DC, ETL Verified to TIA 568-C.2 Cat 6, Fits all OCC UMJ faceplates and surface mount boxes, Full 6-position, modular plug compatible with bezel, Insulation resistance - 500M ohms minimum, Meets IEC 60603-7 requirements, One-piece stuffer cap included, Secure mounting locks jack into faceplate, Universal T568A/B wiring for easy installation
