Image of JQ-DX024DALE
Shop all OCC

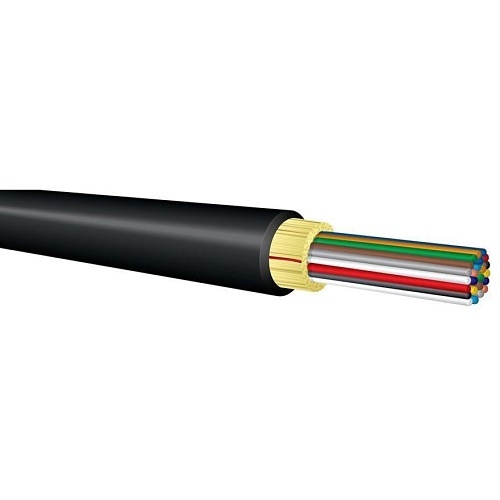

OCC DX024DALE9QR DX-Series Distribution 24-Fiber Cable, Riser Rated

DX024DALE9QR|JQ-DX024DALE
Shop all OCC

OCC DX024DALE9QR DX-Series Distribution 24-Fiber Cable, Riser Rated

DX024DALE9QR|JQ-DX024DALE

Sign In for Dealer Pricing

Become an ADI Customer
OCC

OCC DX024DALE9QR DX-Series Distribution 24-Fiber Cable, Riser Rated

DX024DALE9QR | JQ-DX024DALE

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Indoor/Outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types Ideal configuration for a single termination point requiring multiple fibers 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber No need to splice outdoor cable to indoor cable at building entrance High crush resistance may eliminate the need for innerduct.

Main Features

  • Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
  • Ideal configuration for a single termination point requiring multiple fibers
  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct
  • High performance components and construction
  • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
  • Wide operating temperature range of -40°C to 85°C

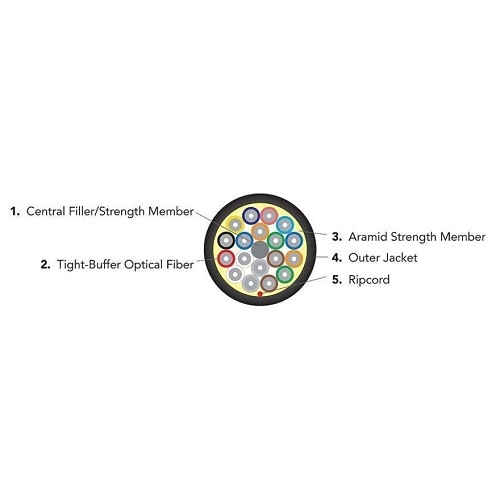

  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers

    • General Information

    Name:OCC DX024DALE9QR DX-Series Distribution 24-Fiber Cable, Riser Rated
    Category:OCC, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
    UPC Code:
    Country of Origin:United States. Country of origin is subject to change.

    Specifications
