LifeSafety Power FPO150-B100D8M8NL4E6A/P8-A ProWire Unified Power Dual Voltage Access Power System, 8-Output Auxiliary, 8-Output Managed, 4A, 24V, 100W Lock Power

FPO150-B100D8M8NL4E6A/P8-A | J7-15BDMNP8A

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

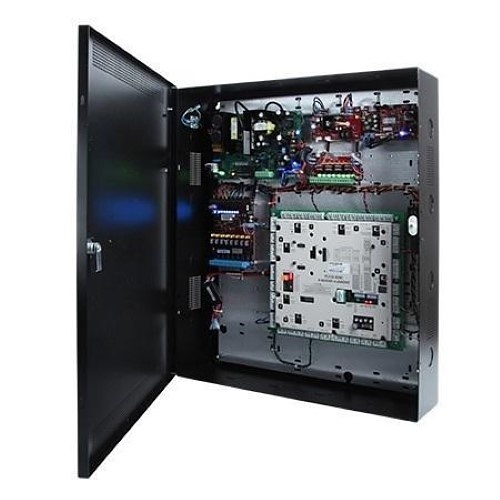

These ProWire Unified Power wall mount models are single and dual voltage access power systems, precision wired for AMAG M2150 or M4000 series controllers. ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing. The C8 or M8 control modules provide eight access control inputs capable of voltage or dry contact activation, and eight outputs programmable for failsafe / failsecure operation at either 12 or 24 V DC and controlled by the power supply fire alarm interface. The D8 module provides eight auxiliary outputs. In these dual voltage systems each output is configurable for 12 or 24V DC operation. ProWire Unified Power enclosures are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested - ready for final panel installation and field wire termination.

Main Features

  • Guarantees uniform installations across an enterprise
  • Pre-installed wire harness for panel power, lock control, communication, faults, and tamper switch
  • Point to point wiring-labeled, color coded, twisted pair, shielded communication
  • Tie wrap or wire duct cable management options
  • Managed systems monitor power, batteries and eight outputs
  • UL294, ULC S319 joint LSP / AMAG integrated listing

    • General Information

    Name:LifeSafety Power FPO150-B100D8M8NL4E6A/P8-A ProWire Unified Power Dual Voltage Access Power System, 8-Output Auxiliary, 8-Output Managed, 4A, 24V, 100W Lock Power
    Category:LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
    UPC Code:810004917774
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
