Product Overview

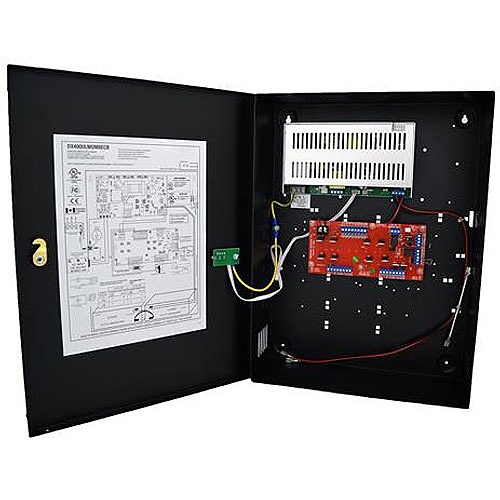

The MOM8ECB provides power across independently protected channels which will switch on or off with the Fire Alarm Control Panel input. These are distribution boards used for Access Control Systems and Egress Doors. Power can be transferred in the event of an alarm from the primary set of 8 channels to a secondary set of 8 channels, allowing the ability to drop power to magnetic doors locks while engaging electric strikes.
Main Features
- Input 120/240vac
- Output 12/24vdc total of 5.5Amp
- 8-Outputs rated at max. 2.0Amp
- Battery Charger 1.5Amp
- Battery Capacity up to 17Ah
- Listing ULC608931-11-1, ULC-S533 Egress Door
General Information
Name: Inaxsys DX400ULMOM8ECB Power Supply
Category: Inaxsys Security Systems, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 685225400592
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number IN-DX4ULMOM8 Brand Name Inaxsys Security Systems Country of Origin CA Manufacturer Inaxsys Security Systems Inc Manufacturer Part Number DX400ULMOM8ECB Product Model DX400ULMOM8ECB Product Name 4A 12/24VDC ULC Listed Power Supply With 4 ECB Out Product Type Power Supply
Output Voltage 12V DC, 24V DC
Input Voltage 120V AC, 240V AC
Environmental Certification UL, ULC
