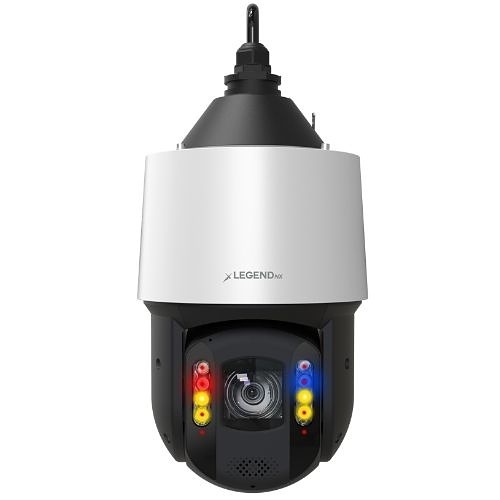

Inaxsys LGNXDO5ADWPTZ32X 5MP Active Deterrence 32x Optical Zoom PTZ
LGNXDO5ADWPTZ32X|IN-5ADWPTZ32
Inaxsys LGNXDO5ADWPTZ32X 5MP Active Deterrence 32x Optical Zoom PTZ
LGNXDO5ADWPTZ32X|IN-5ADWPTZ32
Overview
Specifications
Documents
Product Overview
This 5MP camera offers high-resolution imaging with a 32x optical zoom and 130dB Superior True WDR technology for clear details in various lighting conditions. It features automatic tracking, up to 200m IR range, built-in mic and audio, and iQuality technology for precise detection of humans and vehicles, all housed in an IP67 water and dust-resistant design.
Main Features
General Information
Name:Inaxsys LGNXDO5ADWPTZ32X 5MP Active Deterrence 32x Optical Zoom PTZ
Category:Inaxsys Security Systems, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code:685225204039
Country of Origin:Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Part Number IN-5ADWPTZ32 Brand Name Inaxsys Security Systems Manufacturer Part Number LGNXDO5ADWPTZ32X Product Type Network Camera
Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 54.4° Field of View (Vertical) 41.1° Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 4.8mm Night Vision Yes Night Vision Type Infrared (IR) Optical Zoom 32x Video Formats H.264, H.264+, H.265, H.265+, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP67
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 158°F Minimum Operating Temperature -40°F Operating Humidity 0.95
Longest Shutter Speed 1/1 Second Minimum Illumination 0.0005 lux, 0.005 lux Shortest Shutter Speed 1/100000 Second
Focal Length 4.8-154mm Lens Included Yes Maximum Focal Length 154mm
Durability Dust Resistant, Water Resistant
Input Voltage 36V DC
Diameter 7.4"
