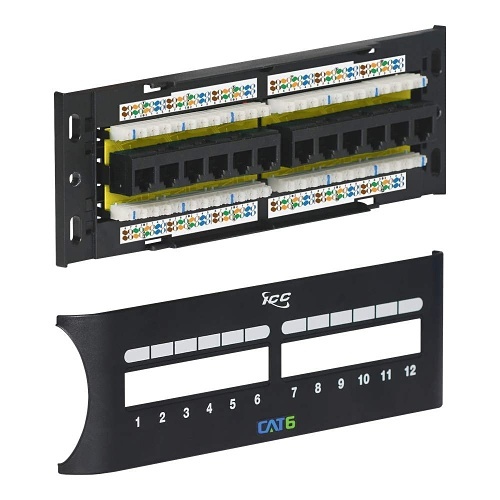

ICC ICMPP12F6E CAT6 Patch Panel, Wall Mount 12-Port Network Patch Panel with Front 110 IDC Terminal Blocks and Removable Cover, UL Listed and PoE++ Rated Gigabit Applications, Black

ICMPP12F6E|H2-MPP12F6E
Acheter ICC

ICC ICMPP12F6E CAT6 Patch Panel, Wall Mount 12-Port Network Patch Panel with Front 110 IDC Terminal Blocks and Removable Cover, UL Listed and PoE++ Rated Gigabit Applications, Black

ICMPP12F6E|H2-MPP12F6E

Se connecter prix revendeur

Devenir client ADI
ICC

ICC ICMPP12F6E CAT6 Patch Panel, Wall Mount 12-Port Network Patch Panel with Front 110 IDC Terminal Blocks and Removable Cover, UL Listed and PoE++ Rated Gigabit Applications, Black

ICMPP12F6E | H2-MPP12F6E

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

ICC's CAT6 Patch Panel offers superior performance for Gigabit Ethernet, with front-access RJ-45 ports and 110 IDC termination blocks. Backward compatible with Cat5e and Cat5 cables, this panel is ideal for high-speed data networks. It supports PoE++ up to 100W and features durable, UL-listed materials. The gold-plated contacts and phosphor bronze connectors provide reliability and long-lasting performance. Designed for efficiency, the panel includes color-coded wiring diagrams and numbered ports for easy installation and management, while enhanced crosstalk cancellation improves signal quality.

Principales caractéristiques

  • HIGH-PERFORMANCE CONNECTIVITY: Wall-mounted CAT6 component-rated fixed patch panel with front access to RJ-45 ports and 110-Type connectors, which allow quick moves, adds, and changes (MACs), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with Cat5e and Cat5 cabling.

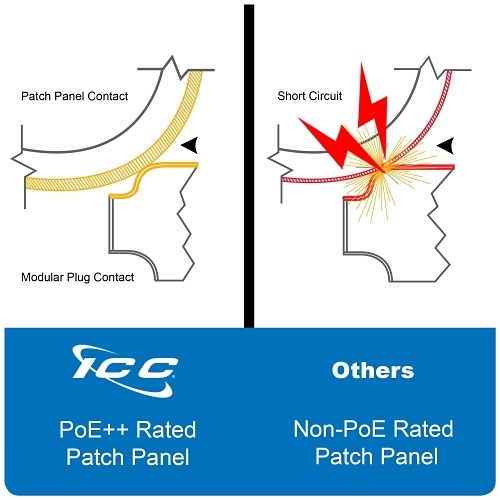

  • FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.
  • EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference.
  • DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
  • ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 6 connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.

    • Renseignements généraux

    Nom:ICC ICMPP12F6E CAT6 Patch Panel, Wall Mount 12-Port Network Patch Panel with Front 110 IDC Terminal Blocks and Removable Cover, UL Listed and PoE++ Rated Gigabit Applications, Black
    Category:ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
    UPC Code:633758038461
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
    Manuel de l`utilisateur
    Instructions d’installation
