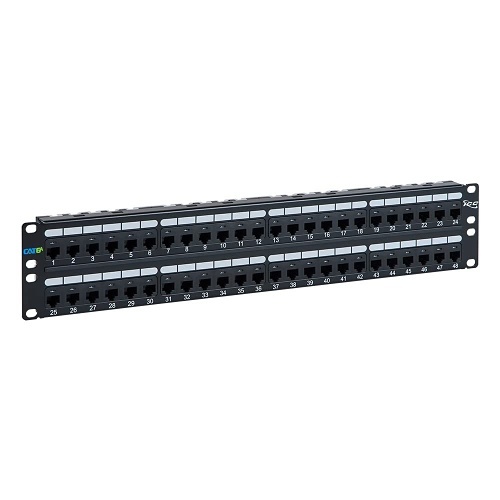

ICC ICMPP0486B 48-Port Rackmount with CAT6a 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated 10 Gigabit Applications, 2U RS, Black

ICMPP0486B | H2-MPP0486B

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Upgrade your network with ICC’s 48-Port CAT6A Patch Panel, designed to support 10 Gigabit Ethernet speeds. Built with durable 16-gauge cold-rolled steel, this 2U rack-mounted panel delivers top-tier connectivity while being backward compatible with Cat6 and Cat5e cables. Gold-plated contacts ensure reliable, correction-free connections, and it supports Power over Ethernet (PoE++) up to 100W. The 110 IDC termination blocks on the rear allow for efficient installation and re-termination over 100 times. Numbered ports and color-coded TIA-568A/B wiring diagrams simplify setup. Exceeding ANSI/TIA-568 Category 6A standards, this patch panel reduces alien crosstalk, ensuring optimal network performance. UL listed and TAA compliant, this panel fits standard 19” racks, making it an ideal choice for high-performance 10 Gigabit networks.

Main Features

HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT6A component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat6 and Cat5e cabling

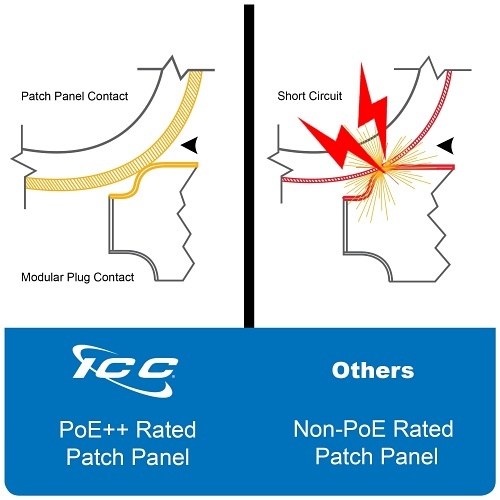

FUTURE-PROOF AND RELIABLE: Designed for 10 Gigabit Ethernet, ensuring your network is future-proof. Ideal for 10 Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W

EFFICIENT INSTALLATION AND QUICK REFERENCE: Featuring 110 IDC connections on the rear, this design reduces termination time and allows for re-termination over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference. It fits standard 19" EIA rack mount width with a 1U (1.75") standard height

DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance

ENHANCED CROSSTALK CANCELLATION: The 110-Type IDC connections on the rear are positioned vertically to effectively reduce potential alien crosstalk. This design is engineered to exceed ANSI/TIA-568 Category 6A connecting hardware requirements, providing enhanced crosstalk cancellation, reducing return loss, and improving overall network performance

General Information

Name: ICC ICMPP0486B 48-Port Rackmount with CAT6a 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated 10 Gigabit Applications, 2U RS, Black

Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels

UPC Code: 633758092234

Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

: ADI Part Number H2-MPP0486B Brand Name ICC Connector Gender Female Manufacturer ICC Manufacturer Part Number ICMPP0486B Product Name CAT6A UTP Patch Panel in 110 Type with 48 Ports and 2 RMS Product Type Network Patch Panel

: Cable Type Category 6a Material Gold, Phosphor Bronze, Zinc Alloy

: Connector Type RJ50 Number of Network (RJ-45) Ports 48 Number of Ports 48

: Color Black Compatible Rack Unit 2U Compatible Rack Width 19" Depth 1.3" Height 1.35" Weight 2.50lb Width 3.5"

: Length 19" Mount Type Rack Mount

: Limited Warranty 3-Year

: Country of Origin TW Features PoE++ Rated to Power Devices Indoor/Outdoor Indoor Package Contents

CAT6A UTP Patch Panel in 110 Type with 48 Ports and 2 RMS

24 x Cable Ties

4 x 12-24 x 5/8" Pan Head, Pilot Point Machine Screws

1 x Installation Instructions
