GRI TS-20-19 Interrupteur anti-sabotage, SPST-NO avec 19"
TS-20-19
|GI-TS2019
Acheter George Risk Industries
GRI TS-20-19 Interrupteur anti-sabotage, SPST-NO avec 19"
TS-20-19 | GI-TS2019
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

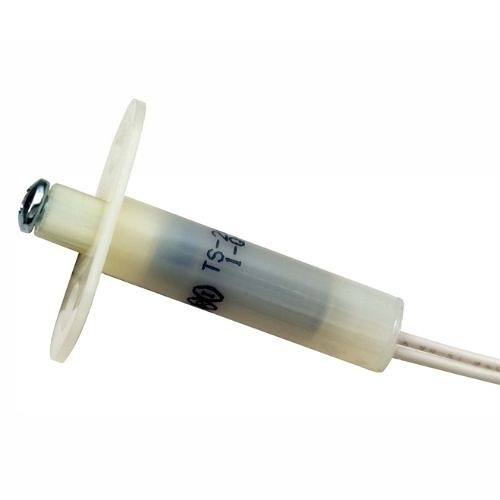

The adjustable plunger actuated TS series was developed to provide a tamper switch with a smaller diameter for applications where a normal plunger or roller ball type switch is too large. The 0.37" diameter is ideal for a variety of door and window applications. The oval flange allows the switch to be solidly anchored where needed. The design also resists locking problems caused by expansion or contraction. Available with a bracket for box tamper. Made of nylon for flexibility, the stainless steel spring and sealed contact insure a long service life.
Principales caractéristiques
- Recessed adjustable plunger from 0.25" to 0.5"
- 0.37" diameter (Smallest in the industry)
- Easy to install
- Replaces old mechanical tampers
- Strong spring action
- Press to fit
- 12" 22AWG leads
- Screw down flange on TS-20 for positive retention
- Longer leads, zip cords or jacketed cable upon request
- Hermeticalled sealed
Renseignements généraux
Name: GRI TS-20-19 Tamper Switch, SPST-NO with 19"
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625012947
Country of Origin: United States. Country of origin is subject to change.
Spécifications
ADI Numéro du produit GI-TS2019 Code fabricant TS-20-19 Marque George Risk Industries Pays d'origine US
Garantie limitée Lifetime Warranty
Caractéristiques 12" #22 AWG leads, 3/8" diameter (Smallest in the industry!), Easy To Install, Hermeticalled sealed, Lifetime Warranty, Longer leads, zip cords or jacketed cable upon request, Mounting hardward included, Plated contacts resist sticking or freezing, Press to fit, Recessed adjustable plunger from 1/4" to 1/2", Replaces old mechanical tampers, Screw down flange on TS-20 for positive retention, Strong spring action, Supervisory loops upon request, Travel distance total .250, pre-travel is .105 ± .035
