GRI 4532CL-48 Miniature Overhead Door Switch Set, Open / Closed Loop, SPDT
4532CL-48|GI-4532CL48
GRI 4532CL-48 Miniature Overhead Door Switch Set, Open / Closed Loop, SPDT
4532CL-48|GI-4532CL48
George Risk Industries
GRI 4532CL-48 Miniature Overhead Door Switch Set, Open / Closed Loop, SPDT
4532CL-48 | GI-4532CL48
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

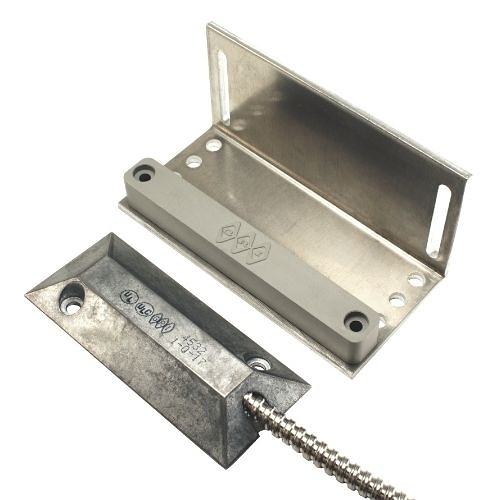

The 4532 is a miniature, low-profile reed switch in cast aluminum for durability in harsh environments. The 4532 features a wide working gap of up to 3" with two feet of heavy-duty armored cable for protection from the elements and a versatile universal magnet which can be mounted at various angles for those difficult installations. The 4532 is also available with an optional "L" bracket. Order part number 4532L for this option. The 4532 is shipped as a set but can be packaged separately. A 0.25" masonry bit is required for lead anchor installation.
Main Features
General Information
Name:GRI 4532CL-48 Miniature Overhead Door Switch Set, Open / Closed Loop, SPDT
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625036738
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-4532CL48 Brand Name George Risk Industries Manufacturer Part Number 4532CL-48 Product Series 4532
Armored Yes
Limited Warranty Lifetime Warranty
Country of Origin US Features 24" armored cable standard, Built-in E.O.L. Resistors and Diodes Upon Request, Cast aluminum casing for harsh environments, For loose overheads, Hermetically sealed, Longer leads available upon request, Low cost, Miniature floor mount, Mounting hardware included, Optional L bracket, Plated contacts resist sticking or freezing, Switches and magnets available separately, Universal magnet for mounting flexibility
