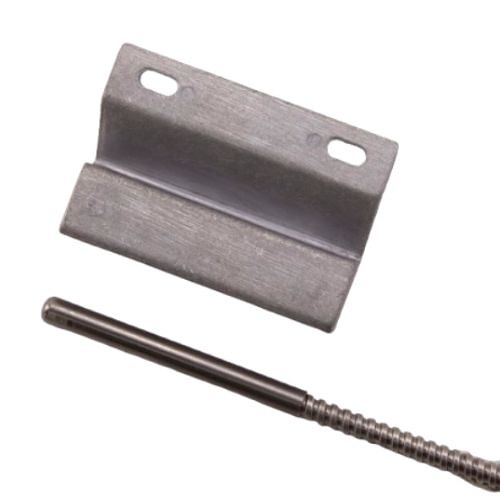

GRI 4510AU Concrete Concealed Switch, 1/2" Gap, Open/Closed Loop, SPDT, Reed Form, 5W
4510AU|GI-4510AU
GRI 4510AU Concrete Concealed Switch, 1/2" Gap, Open/Closed Loop, SPDT, Reed Form, 5W
4510AU|GI-4510AU
George Risk Industries
GRI 4510AU Concrete Concealed Switch, 1/2" Gap, Open/Closed Loop, SPDT, Reed Form, 5W
4510AU | GI-4510AU
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Perhaps the best way to protect overhead door contacts from industrial motorized traffic like forklifts and large trucks is to recess or bury them into the concrete floor, allowing vehicles of this type to safely pass over them totally unaffected.
The G.R.I. 4510 switch series has been designed from the ground up, so to speak, for just such an application. The 4510 series features all stainless steel construction for maximum resistance to corrosion and has a wide working gap for those loose or badly worn overhead doors.
Main Features
General Information
Name:GRI 4510AU Concrete Concealed Switch, 1/2" Gap, Open/Closed Loop, SPDT, Reed Form, 5W
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625040841
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-4510AU Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 4510AU Product Model 4510AU Product Name 4510AU Magnetic Contact Product Series 4510 Product Type Magnetic Contact
Connectivity Technology Wired Material Stainless Steel Standard Gap 3.5"
Color Brown
Power Source DC
Contact Type SPDT Installation Type Commercial Mount Type Recessed Mount
Limited Warranty Lifetime Warranty
Additional Information - Switch Protected From Heavy Equipment
- Maximum Switching Voltage:175VDC
- Maximum Switching Current:0.250A
- Maximum Contact Rating: 5W
- Electrical Configuration: N/O
- Concrete concealed
- S.P.D.T.
Country of Origin US Features Concrete concealed, Electrical Configuration - N/O, Maximum Contact Rating - 5W, Maximum Switching Current - 0.250A, Maximum Switching Voltage - 175VDC, S.P.D.T., Switch Protected From Heavy Equipment Package Contents - 4510AU Magnetic Contact
- Mounting Hardware
