GRI 4473RS-BL Vinyl Switch Set 1/2″ Gap Closed Loop, Recessed Wood, Aluminum, Black
4473RS-BL|GI-4473RSBL
GRI 4473RS-BL Vinyl Switch Set 1/2″ Gap Closed Loop, Recessed Wood, Aluminum, Black
4473RS-BL|GI-4473RSBL
George Risk Industries
GRI 4473RS-BL Vinyl Switch Set 1/2″ Gap Closed Loop, Recessed Wood, Aluminum, Black
4473RS-BL | GI-4473RSBL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

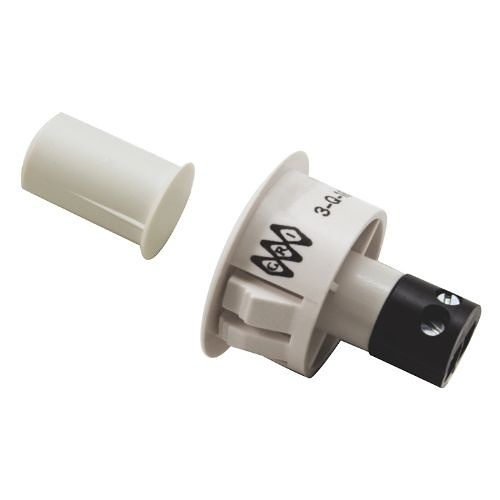

The 120T-12/4473 requires that a 0.75" hole be drilled for the switch and a 0.37" hole for the magnet. The 0.75" switch mounting is desirable since extra wire and connections are more easily inserted into the larger hole for concealment. Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections. Installation is further enhanced by using a smaller 0.37" magnet to avoid the need to center a larger hold in a 1" to 1.5" thick door or window. This will allow you to offset the magnet should it be required. The 120T-12/4473 switch set was developed for and should only be used in openings with wood or aluminum frames.
Main Features
- 0.75" switch and 0.37" magnet for wooden, vinyl or aluminum doors and windows
- Stubby version also available
- Recessed magnetic contact
- Press to fit
- 12" 22AWG leads or screw terminals
- Longer leads, zip cord or jacketed cable upon request
- Plated contacts resist sticking or freezing
- Built-in E.O.L. Resistors and Diodes upon request
- Supervisory Loops available upon request
- Switches and Magnets available separately
General Information
Name:GRI 4473RS-BL Vinyl Switch Set 1/2″ Gap Closed Loop, Recessed Wood, Aluminum, Black
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625073511
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-4473RSBL Brand Name George Risk Industries Manufacturer Part Number 4473RS-BL
Color Black
Limited Warranty Lifetime Warranty
Features 12" #22AWG leads or screw terminals, 3/4" switch and 3/8" magnet for wooden, vinyl or aluminum doors and windows, Built-in E.O.L. Resistors and Diodes Upon Request, Colors- white, brown, gray and black, Hermetically sealed, Lifetime Warranty, Longer leads, zip cord or jacketed cable upon request, Plated contacts resist sticking or freezing, Press to fit, Recessed magnetic contact, Stubby version also available, Supervisory Loops available upon request, Switches and magnets available separately
