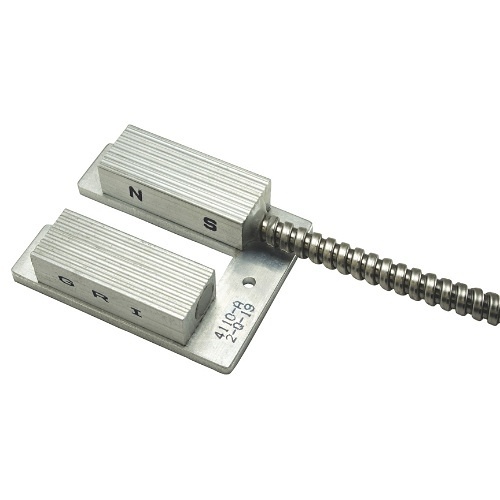

GRI 4110-A Commercial Overhead Door Switch, Closed, 18" Armored Cable, Normally Open
Brand: George Risk Industries
ADI #:GI-4110A
Model #: 4110-A
Name: GRI 4110-A Commercial Overhead Door Switch, Closed, 18" Armored Cable, Normally Open
- The GRI 4110A Series is basically a vane switch for use on storage units with overhead doors and latch type locks. Intended to be mounted on a roll up type door channel, the 4110 will not allow the alarm system to arm unless the bolt or latch, which serves as a shunt between the reed switch and magnet, is in a locked position.
- Removal or tampering of the bolt or latch removes the shunting effect and an alarm will be activated when the circuit is opened
- The 4110A series is available with an 18 armored cable. It is a low profile, extruded aluminum switch mounted on an aluminum plate. Optional mounting kit available.
Product Overview
General Information
Name: GRI 4110-A Commercial Overhead Door Switch, Closed, 18" Armored Cable, Normally Open , George Risk IndustriesCategory: Magnetic Contacts
UPC Code: 697625038756
Country of Origin: United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-4110A
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : 4110A
Product Model : 4110A
Product Name : 4110A Magnetic Contact
Product Series : 4110
Product Type : Magnetic Contact
Technical Information
Contact Resistance (Ohm) : 0.14
Recommended Use : Door
Camera
Connectivity Technology : Cable
Physical Characteristics
Color : Aluminum
Depth : 0.55" (13.97 mm)
Depth (mm) : 13.97
Height : 2.25" (57.15 mm)
Height (mm) : 57.15
Product Color : Aluminum
Width : 1.75" (44.45 mm)
Width (mm) : 44.45
Product Information
Contact Type : Closed Loop
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul><li>Armored Cable or Jacketed</li><li>Latch type door protection</li><li>Vane switch shunt</li><li>Easy Installation</li><li>Cost effective</li></ul>
Country of Origin : United States
