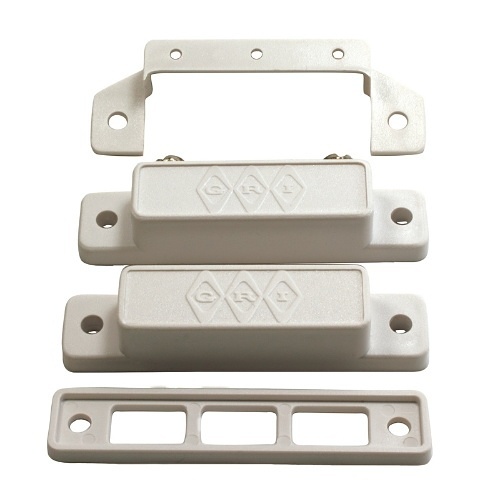

GRI 29A-G-W/10K Surface Mount Switch Set with 10k Resistor, 1" Standard Gap, Closed Loop, Gray
29A-G-W/10K
|GI-29AGW10K
Shop All George Risk Industries
GRI 29A-G-W/10K Surface Mount Switch Set with 10k Resistor, 1" Standard Gap, Closed Loop, Gray
29A-G-W/10K | GI-29AGW10K
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1", a wide gap of up to 1.5" and an extra wide gap of 2" and can be installed on a steel surface with a minimum gap penalty. The "P" style is a pre-wired switch with 2' of conductor cable. A broad range of mounting brackets are also available. See spec. sheet in accessory section of our catalog.
Specifications
ADI Part Number GI-29AGW10K Brand Name George Risk Industries Manufacturer Part Number 29A-G-W/10K Packaged Quantity 10
Color Gray Package Type Pack
Limited Warranty Lifetime Warranty
Country of Origin US Features 24" #22AWG 2 conductor jacketed lead on 29PA, Built in E.O.L. Resistors and Diodes upon request, Colors- white, brown and gray, Concealed screw terminals on 28 series, Covers, spacers and mounting hardware included, Hermetically sealed, Longer leads on 29PA upon request, Plated contacts resist sticking or freezing, Private labeling upon request, Screw down flanges, Side screw terminals on 29 series, Supervisory loops and dummy terminals upon request, Surface mount magnetic contact, Switches and magnets available separately, This versatile series sets the Industry Standard for Commercial and Light Industrial applications
