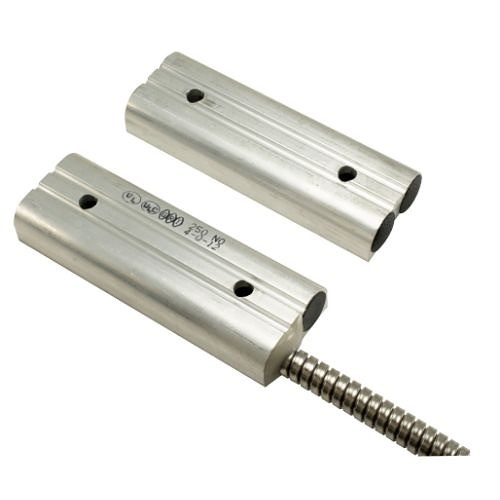

Image of GI-25036WG
Acheter George Risk Industries

GRI 250-36WG Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Wide Gap

250-36WG|GI-25036WG
Acheter George Risk Industries

GRI 250-36WG Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Wide Gap

250-36WG|GI-25036WG

Se connecter prix revendeur

Devenir client ADI
Image of GI-25036WG
George Risk Industries

GRI 250-36WG Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Wide Gap

250-36WG | GI-25036WG

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The GRI 200 Series is referenced and produced as an industrial grade floor mount switch. Primarily used for the protection of overhead doors where the operation of heavy motorized traffic would make it impossible to use any type of plastic encapsulated switch.

The 200 housing is extruded from 6063 T5 aluminum material and tested to withstand a crushing force of 20,000 pounds or 10 tons without harming the delicate reed switch. All mounting hardware including lead anchors are provided as well as a mounting bracket for the actuating magnet.

  • Extruded Aluminum Floor or Wall Mount Switch
  • Universal Fit Mounting Holes on 200-36 Series
  • Screw Mount
  • #22AWG In 36” Stainless Steel Armored Cable
  • Longer Leads Upon Request
  • Hermetically Sealed
  • Plated Contacts Resist Sticking or Freezing
  • Magnet, Bracket and Mounting Hardware Included
  • Built-in E.O.L. Resistors Upon Request
  • Supervisory Loops Available Upon Request
  • Switches and Magnets Available Separately
  • Lifetime Warranty

Principales caractéristiques

  • Designed Especially For Loose Fitting, Worn or Damaged Overhead Doors
  • Expanded Area of Activation For Doors That don't return to the exact or
  • approximate position upon closure
  • Standard Switch Length is 7 1/2" with 36" Armored Cable
  • Up to 3.25" Gap
  • Extruded Aluminum Floor or Wall Mount Switch
  • Custom Switch and Lead Lengths Available
  • Screw Mount
  • Magnet, Bracket and Mounting Hardware Included
  • Lifetime Warranty

    • Renseignements généraux

    Nom:GRI 250-36WG Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Wide Gap
    Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
    UPC Code:697625005949
    Country of Origin:United States. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
    Manuel de l`utilisateur
