Product Overview

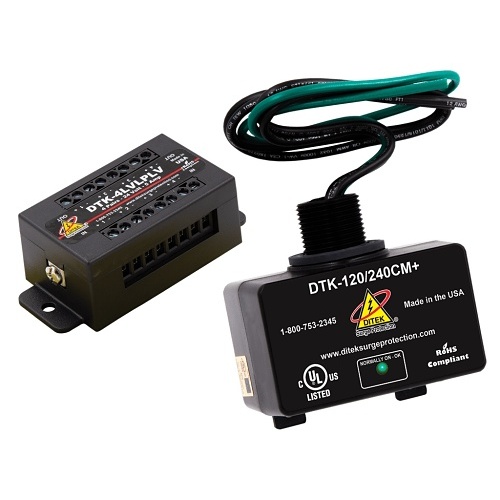

DITEK's DTK-HVACKIT surge protection kit includes one DTK-120/240CM+ for HVAC condenser protection, and one DTK-4LVLPLV to protect thermostat control wires at air the handler.
- 120/240V single phase SPD with NEMA 4X enclosure - to be installed and wired to the load side of the disconnect
- 4-pair, 24V surge protector - to be installed in series with thermostat control wires at air handler
Main Features
- Surge protection for HVAC systems
- Includes DTK-120/240CM+ for condenser
- Protects thermostat control wires
- 120/240V single phase SPD
- NEMA 4X enclosure for durability
- 4-pair, 24V surge protector
- Easy installation on load side
- Series installation with thermostat wires
General Information
Name: DITEK DTK-HVACKIT Surge Protection Kit
Category: DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 782980519412
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number DK-HVACKIT Brand Name DITEK Country of Origin US Manufacturer DITEK Corporation Manufacturer Part Number DTK-HVACKIT Product Name Surge Protected Outlet Kit Product Type Surge Protected Outlet Kit
TAA Compliant Yes
Limited Warranty 10-Year
