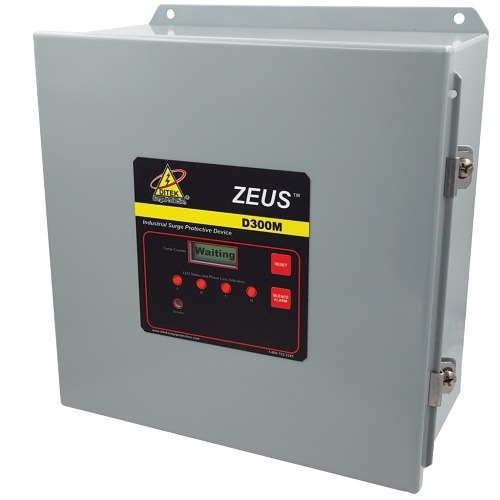

DITEK D300M-120/2401 300KA Phase Modular Surge Protective Device, 120/240V
D300M-120/2401
|DK-D300M1201
Shop All DITEK
DITEK D300M-120/2401 300KA Phase Modular Surge Protective Device, 120/240V
D300M-120/2401 | DK-D300M1201
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
DITEK's D300M industrial surge protectors are designed to meet new construction bid/spec requirements for facility-wide protection. Each model provides a high surge current rating to ensure long service life, and includes service assurance features to support proactive operational management. The D300M-120/2401 protects 120/240VAC split phase panels.
- 300,000 Amps/phase surge current rating, 150,000 Amps/mode, ensures long service life
- Visual LED end of life and phase loss indicators
- Audible alarm with silence button
- Form C dry contacts for remote monitoring
- EMI/RFI noise filtering
- Replaceable SPD module
Main Features
General Information
Name: DITEK D300M-120/2401 300KA Phase Modular Surge Protective Device, 120/240V
Category: DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 782980520470
Country of Origin: Mexico.Country of origin is subject to change.
Specifications
ADI Part Number DK-D300M1201 Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number D300M-120/2401 Product Line ZEUS Product Name ZEUS D300M-120/2401 Surge Suppressor/Protector Product Series D300M Product Type Surge Suppressor/Protector
TAA Compliant Yes
Receptacles Hardwired
Height 6.2" Width 13"
Input Voltage 120V AC, 230V AC
Limited Warranty 10-Year
Country of Origin MX Environmental Certification RoHS Environmentally Friendly Yes
