Comelit

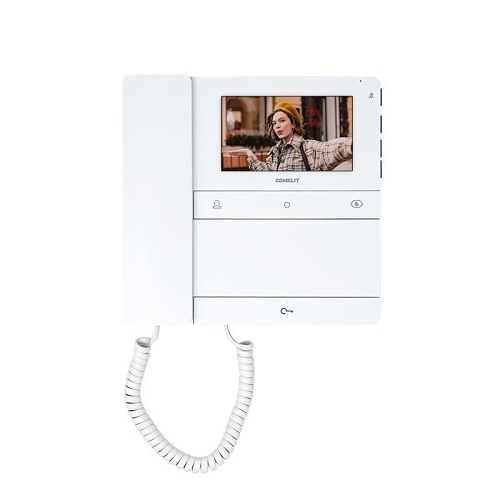

Comelit PL6701 PEOPLE Series Video Intercom
PL6701 | CU-PL6701
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
People series colour door entry monitor for Simplebus 2 system. Version with handset and 4.3" / 16:9 screen. Even when switched off, the video door entry monitor can be programmed using a smartphone and the MyComelit app, which can be downloaded free of charge. It is supplied with a metal surface-mounted backplate, which ensures it is firmly and securely anchored, and with a line distribution terminal. It has 4 mechanical buttons on the front panel with icons identifying the factory-set function. One button is backlit white to make the 'electric lock' function easier to use. 3 buttons are programmable and pre-configured to call the porter switchboard, control an actuator, and perform self activation. The buttons at the centre of each row are tactile to guide visually impaired people. On the right side of the door entry monitor, on the other hand, there are buttons to activate the Silent mode with a red indicator light and related icon, as well as buttons to access the menu for adjusting brightness, contrast, colour and the ringtone volume. It comes as standard with the floor door call, which can also be programmed for other functions. Dimensions (L x H x D)-186 x 180 x 35 mm.
Main Features
- 4.3" color screen with 16:9 aspect ratio
- Compatible with Simplebus 2 system
- Programmable via smartphone and MyComelit app
- Includes metal surface-mounted backplate
- 4 mechanical buttons with factory-set functions
- Backlit button for easy 'electric lock' use
- Tactile buttons for visually impaired users
- Silent mode with red indicator light
- Adjustable brightness, contrast, color, and volume
- Standard floor door call with programmable functions
General Information
Name:Comelit PL6701 PEOPLE Series Video Intercom
Category:Comelit, Communications, Intercoms & Telephone Entry, Intercom Master Stations
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number CU-PL6701 Brand Name Comelit Manufacturer Part Number PL6701 Product Line 2-Wire Product Series PEOPLE Product Type Video/Audio Answering Station
Material ABS, PMMA Power Consumption 6.6W
Screen Size 4.3"
Color White Depth 1.38" Height 7.09" Width 7.32"
Input Voltage 33V DC
Display Screen Type TFT
Certifications & Standards EMC 2014/30/UE (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011), RoHS II - 2011/65/UE (EN IEC 63000:2018) Environmental Certification EMC 2014/30/UE (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011), RoHS II - 2011/65/UE (EN IEC 63000:2018)
