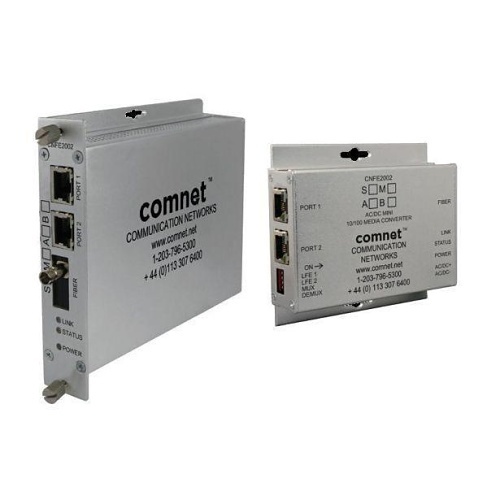

Image of C4-CNFE202MC
Shop all ComNet

ComNet CNFE2002M1APOE/M/C 2TX to 1 FX Media Converter, Coating

CNFE2002M1APOE/M/C|C4-CNFE202MC
Shop all ComNet

ComNet CNFE2002M1APOE/M/C 2TX to 1 FX Media Converter, Coating

CNFE2002M1APOE/M/C|C4-CNFE202MC

Sign In for Dealer Pricing

Become an ADI Customer
Image of C4-CNFE202MC
ComNet

ComNet CNFE2002M1APOE/M/C 2TX to 1 FX Media Converter, Coating

CNFE2002M1APOE/M/C | C4-CNFE202MC

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The ComNet Ethernet CNFE2002M1APoE/M media converter is two-channel Ethernet electrical to optical media converter. This auto-negotiating device accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This media converter is multimode one fiber ST optical connector. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE2002M1APoE/M can be powered by wide range AC or DC input while the CNFE2002M1APoE/M units meet the 802.3at standard and provide 30 watts of PoE+ power.

Main Features

  • 30W PoE+ on ports 1 and 2
  • 10/100 Mbps Ethernet
  • 2 × 10/100 BASE-T/TX electrical ports
  • 100 BASE-FX optical port
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Optical port supports 100 Mbps full duplex data
  • Automatic MDI/MDI-X crossove
  • ST optical connector
  • No in-field optical adjustments required
  • Full size units feature a contact closure output for remote side link failure detection

    • General Information

    Name:ComNet CNFE2002M1APOE/M/C 2TX to 1 FX Media Converter, Coating
    Category:ComNet, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:845770016376
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
