ComNet CLLFE16POEC PoE Extender, 16-Port EOC Ethernet Extender, 30W, PoE

CLLFE16POEC

|

C4-CLLFE16PE

Se connecter prix revendeur

Vous n’êtes pas encore client d’ADI?Devenir Client
Fiche technique
Acheter ComNet

ComNet CLLFE16POEC PoE Extender, 16-Port EOC Ethernet Extender, 30W, PoE

CLLFE16POEC | C4-CLLFE16PE

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

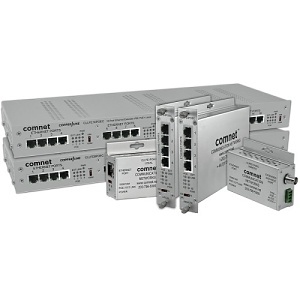

The ComNet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with PoE+ Power Injection and Pass-through PoE+ over twisted pair cable (CAT-5, UTP) or over coax. With the ability to connect directly to a PoE+ switch, or the ability to generate PoE+power with a 48 to 56 V input* to either the Local or Remote ends, these units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. A complete set includes both a Local and Remote module.Remote units are available in small package sizes that include one or four channels, and Local modules are available in the same packages as well as a 1RU rack for larger channel counts.


Principales caractéristiques

  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Sy mmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • User-selectable data rate for maximum bandwidth and transmission distance utilization
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over standard UTP or Coaxial cable
  • Status indicating LEDs provide rapid indication of critical operating parameters
  • Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use

Renseignements généraux

Name: ComNet CLLFE16POEC PoE Extender, 16-Port EOC Ethernet Extender, 30W, PoE
Category: ComNet, Data Comm & Networking, PoE Devices
UPC Code: 845770010701
Country of Origin: United States. Country of origin is subject to change.

Spécifications

Documents et ressources

Télécharger tous les documents
Fiche de produit
Instructions d’installation
