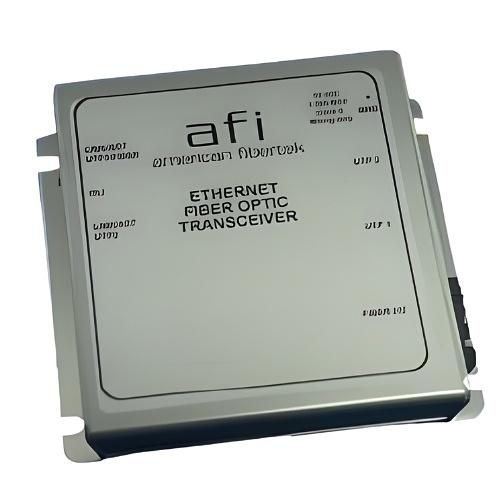

Image of AZ-MX48SLPHP
Acheter American Fiberteck

AFI MX-48-LX-SL-SC-POE-HP 2-Fiber 1-Channel 60W SC Connector Module, Single Mode, 10 km

MX-48-LX-SL-SC-POE-HP|AZ-MX48SLPHP
Acheter American Fiberteck

AFI MX-48-LX-SL-SC-POE-HP 2-Fiber 1-Channel 60W SC Connector Module, Single Mode, 10 km

MX-48-LX-SL-SC-POE-HP|AZ-MX48SLPHP

Se connecter prix revendeur

Devenir client ADI
American Fiberteck

AFI MX-48-LX-SL-SC-POE-HP 2-Fiber 1-Channel 60W SC Connector Module, Single Mode, 10 km

MX-48-LX-SL-SC-POE-HP | AZ-MX48SLPHP

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The MX-48-LX-SL-SC-PoE-HP from American Fibertek is a transmits and receives (2) copper 10/100/1000 Base-T Ethernet signals at the RJ45 ports and (1) optical 1000 Base-LX over 1 or 2 singlemode fibers. The system is comprised of two units forming a point-to-point communications link. The sources up to 60 Watts of power to an Ethernet powered device (PD) from one RJ45 port. The power is carried over all 4 pairs of the Ethernet cable. However, it is required that the PD have independent discovery and classification interfaces for both the data pair and the spare pair of the Ethernet cable. Both RJ45 ports may be used to deliver Ethernet data to devices. An external power supply is required. The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100/1000 Base-T). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.

Principales caractéristiques

  • Complete Fiber Optic to Twisted Pair Media Interface: Enables seamless integration between fiber optics and copper networks, enhancing flexibility in network designs
  • Auto MDI / MDIX Detection: Automatically adjusts to crossover or straight-through connections, simplifying installation and reducing configuration errors
  • Auto Negotiate 10/100/1000 Ports: Ensures optimal data transfer speeds by automatically adjusting to the highest supported speeds of connected devices
  • Link and Activity Indicators for UTP and Fiber Ports: Provides immediate visual feedback on network status, facilitating easier troubleshooting and monitoring
  • Singlemode Fiber Version: Optimized for long-distance transmission, ideal for expansive network setups
  • Power (60W) Over Ethernet on 1 Port: Delivers power to connected devices, reducing the need for additional power sources and streamlining installations
  • Two RJ45 Data Ports Available: Allows connection of multiple devices, enhancing network scalability and resource sharing
  • Extended Temperature Range: Ensures reliable performance in harsh environments, making it suitable for various applications

    • Renseignements généraux

    Nom:AFI MX-48-LX-SL-SC-POE-HP 2-Fiber 1-Channel 60W SC Connector Module, Single Mode, 10 km
    Category:American Fiberteck, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:809100050720
    Country of Origin:United States. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
