Altronix NETWAY8V Midspan Injector, 8-Port, 10/100, PoE/PoE+, 150W, 220V AC
NETWAY8V|AX-NET8V
Altronix NETWAY8V Midspan Injector, 8-Port, 10/100, PoE/PoE+, 150W, 220V AC
NETWAY8V|AX-NET8V
Altronix
Altronix NETWAY8V Midspan Injector, 8-Port, 10/100, PoE/PoE+, 150W, 220V AC
NETWAY8V | AX-NET8V
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

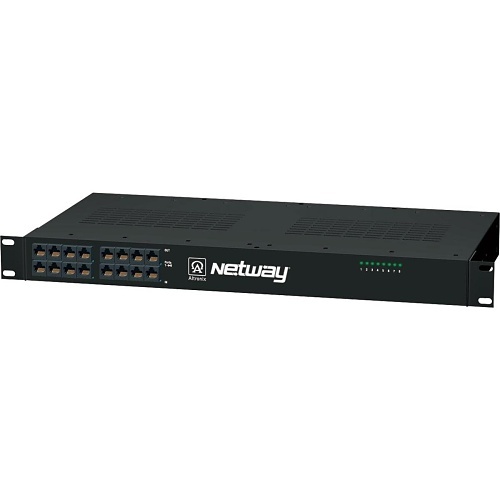

Introducing the Altronix NETWAY8V Midspan Injector, a powerful solution designed to deliver both power and data to your PoE-compliant cameras and devices. This compact 1U EIA 19" rack mount unit features eight ports, allowing for flexible installation with devices positioned up to 100 meters away. For extended reach, the NetWayXT repeater module can double this distance, achieving a remarkable total range of 200 meters, or even up to 600 meters with multiple repeaters. Additionally, it supports non-PoE devices with the use of specific adapters. Elevate your surveillance setup with this efficient and versatile midspan injector. Don't miss out—secure yours today!
Main Features
General Information
Name:Altronix NETWAY8V Midspan Injector, 8-Port, 10/100, PoE/PoE+, 150W, 220V AC
Category:Altronix, Data Comm & Networking, PoE Devices
UPC Code:782239946815
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-NET8V Manufacturer Part Number NETWAY8V Maximum Transfer Distance 1968.5' Product Line NetWay Product Model NETWAY8V Product Name Midspan Injector, 8 Port, 10/100, PoE/PoE+, 150W, 220VAC Product Series NetWay Product Type PoE Injector
Output Voltage 48-57V
NDAA Compliant Yes
Operating Relative Humidity (H-H) 0.85 Operating Temperature (T-T) -4-104°F Storage Temperature (T-T) -4-158°F
Input Ports 1 x 10/100 BaseT
Depth 8.5" Height 1.63" Rack Height 1U Rack Width 19" Weight 8.1lb Width 19.13"
Frequency 60 Hz Input Voltage 220V AC Maximum Frequency 60 Hz Maximum Input Current 1.8A Maximum Output Power 150W Minimum Frequency 50Hz Power over Ethernet (PoE) Yes
Mount Type Rack Mount Protection Type Short Circuit Protection
Limited Warranty Lifetime
Additional Information Port Status LEDs Certifications & Standards CE, IEEE 802.3af, IEEE 802.3at Country of Origin US Environmental Certification CE
