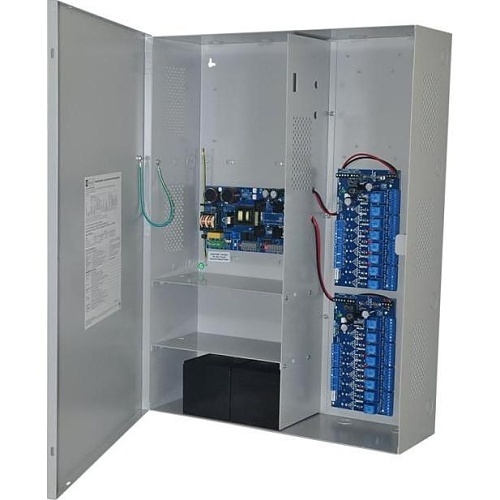

Altronix MAXIMAL5FDV Access Power Controller with Power Supply / Charger, 16 PTC Class 2 Relay Outputs, 12VDC at 9A, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL5FDV|AX-MAXIALDV
Altronix MAXIMAL5FDV Access Power Controller with Power Supply / Charger, 16 PTC Class 2 Relay Outputs, 12VDC at 9A, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL5FDV|AX-MAXIALDV
Altronix
Altronix MAXIMAL5FDV Access Power Controller with Power Supply / Charger, 16 PTC Class 2 Relay Outputs, 12VDC at 9A, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL5FDV | AX-MAXIALDV
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
Introducing the Altronix MAXIMAL5FDV Access Power Controller, designed to efficiently manage and distribute power to your access control systems and accessories. This robust unit converts a 220V AC input into sixteen independently controlled 12V DC outputs, each protected by PTC. It seamlessly integrates with various access control devices such as mag locks and electric strikes, ensuring reliable operation. The FACP Interface supports emergency egress and alarm monitoring, while the fire alarm disconnect feature offers customizable output control. Elevate your security setup with this essential power solution. Don't miss out—secure your Altronix MAXIMAL5FDV today!
Principales caractéristiques
Renseignements généraux
Nom:Altronix MAXIMAL5FDV Access Power Controller with Power Supply / Charger, 16 PTC Class 2 Relay Outputs, 12VDC at 9A, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
Category:Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin:. Country of origin is subject to change.
Spécifications
ADI Numéro du produit AX-MAXIALDV Code fabricant MAXIMAL5FDV Fabricant Altronix Corporation Gamme Maximal R Genre du connecteur Access Control Marque Altronix Modèle de produit MAXIMAL5FDV Nom de produit Access Power Controller With Power Supply/Charger, 16 PTC Class 2 Relay Outputs, 12V DC at 9A, FAI, LinQ2 Ready, 220V AC, BC800 Enclosure Type de produit Access Power Controller
Nombre de porte(s) 16 Tension de sortie 12V DC
NDAA Compliant Yes
Température de fonctionnement 32-120°F Temperature de stockage (T-T) -4-158°F
Hauteur 26" Largeur 19" Poids 32.3lb Profondeur 6.25"
Tension d'entrée 220V AC
Garantie Limitée Lifetime
Caractéristiques AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC), Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure), Failover: Upon AC loss, instantaneous, Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs., Low battery and battery presence supervision (form "C" contact), Normally open (NO) or normally closed (NC) dry contact input, Notification trigger is selectable for 30 seconds (factory set) or 2 hours, Polarity reversal input from FACP signaling circuit, Type: Sealed lead acid or gel type Certification environnementale RoHS Intérieur/extérieur Indoor
