Product Overview

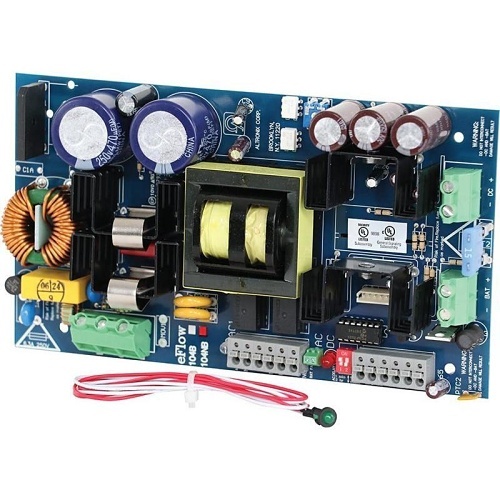

Introducing the Altronix EFLOW104RLB Power Supply Charger, a reliable solution for your power needs. This unit efficiently transforms a 120VAC, 60Hz input into a robust 24VDC output, ensuring optimal performance. It is equipped with essential features such as fire alarm disconnect, overvoltage protection, and low power disconnect to safeguard your standby batteries from deep discharge. The package includes an LED cable assembly and lens, making installation straightforward. Perfect for both residential and commercial applications, this power supply charger is designed to meet your demands. Don't miss out on this essential addition to your setup – order yours today!
Main Features
- Converts 120VAC to 24VDC output
- 10A power supply with fire alarm disconnect
- Overvoltage and low power protection
- Prevents deep discharge of batteries
- Includes LED cable assembly and lens
- Supports sealed lead acid or gel batteries
- Fire alarm disconnect feature
- Supervised latching or non-latching
- LED indicators for input and output
- Prevents deep battery discharge
General Information
Name: Altronix EFLOW104RLB Power Supply Charger, 10A 24V
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239975952
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-EFLW14LB Manufacturer Part Number EFLOW104RLB Product Line eFlow Product Model EFLOW104RLB Product Name Power Supply Charger, With LED Cable Assembly, 24VDC at 10A, 120VAC, Board Product Series EFLOW Product Type Power Supply Sector Access Control
Output Voltage 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Height 1.50" Weight 1.10lb Width 4.56"
Input Voltage 120V AC Output Current 10.0000A
Mount Type Panel Mount
