Product Overview
Introducing the Altronix EFLOW104NA8DV, a powerful solution designed to efficiently distribute and manage power for access control systems and their accessories. This unit transforms a 220VAC 50/60Hz input into eight independently controlled 24VDC outputs, each protected by PTC. The outputs can be easily converted to dry form "C" contacts and are activated by various triggers such as access control systems, card readers, and more. It supports both Fail-Safe and Fail-Secure modes, ensuring versatility for different security needs. With features like Emergency Egress and Alarm Monitoring, this power supply is essential for any access control setup. Don't miss out on enhancing your security system—order the Altronix EFLOW104NA8DV today!
Main Features
- Filtered and electronically regulated outputs
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input, b) Polarity reversal input from FACP signaling circuit
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs
- Eight (8) auxiliary power outputs (unswitched)
- Supervision: AC Fail, Low Battery and Battery Presence, Low power shutdown
General Information

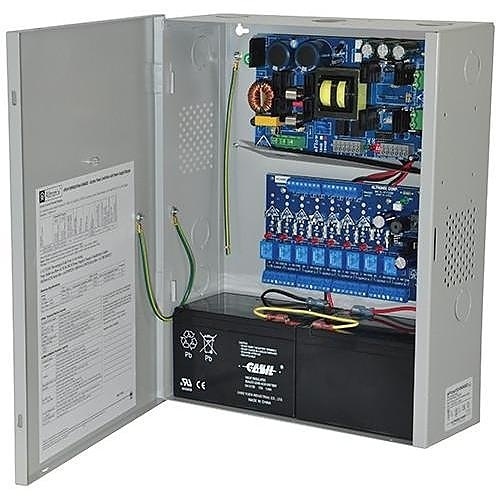

Name: Altronix EFLOW104NA8DV Power Supply with ACM8CB
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-EF04NA8DV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW104NA8DV Product Line eFlow Product Model EFLOW104NA8DV Product Name Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 24VDC, 10A, Aux Output, FAI, 220VAC, BC400 Enclosure Product Type Access Power Controller Power Supplies Sector Access Control
Number of Doors 8 Output Voltage 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 4.50" Height 15.50" Weight 8.90lb Width 12.00"
Input Voltage 220V AC
Limited Warranty Lifetime
Indoor/Outdoor Indoor
