Product Overview
The ConteraIP Indoor Dome megapixel camera features 1080p and 5MP resolution for optimum performance. The ConteraIP Indoor Dome combines a day/night mechanical IR cut filter with an integrated fixed or motorized remote focus and zoom varifocal lens for excellent, optimal image quality.Regardless of the time of day, the ConteraIP Indoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions.
Main Features
- 1080p (2.1MP) or 5MP Resolution
- Fixed and Varifocal Lens Options
- Remote Focus/Zoom Motorized Lens (-200 Models Only)
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Enhanced WDR up to 120dB at Full Resolution- See Clearly in Shaded and Bright Light Conditions Simultaneously
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- 1TB Capacity MicroSDXC Card Slot for Onboard Storage
General Information

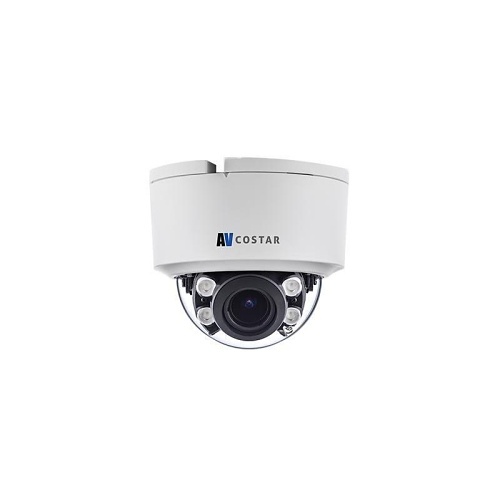

Name: IDIS AV02CID-201 2MP Indoor Dome Camera, 3.6mm Lens, White
Category: IDIS, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 847778001736
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number A8-AV02CID21 Manufacturer Part Number AV02CID-201
Aspect Ratio 16:9 Effective Camera Resolution 2MP Night Vision Yes Night Vision Type Infrared (IR) Wide Dynamic Range Yes
Image Sensor Type CMOS
Ingress Protection Rating IP66 TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Operating Humidity 10-90%
Minimum Illumination 0.0050lux
Focal Length 3.6mm Lens Included Yes Maximum Focal Length 3.60mm
Input Voltage 12V DC
Mount Type Surface Mount
Graphics Modes Full HD
Features 1080p (2.1MP), Day and Night (ICR), Easily Adjustable 3-Axis Gimbal, Fixed Lens 3.6mm, IK10 / IP66, NDAA Compliant, PoE (IEEE 802.3af Class 3), 12V DC, Supports ONVIF, True Wide Dynamic Range (WDR), Two-way audio Impact Protection Rating IK10
