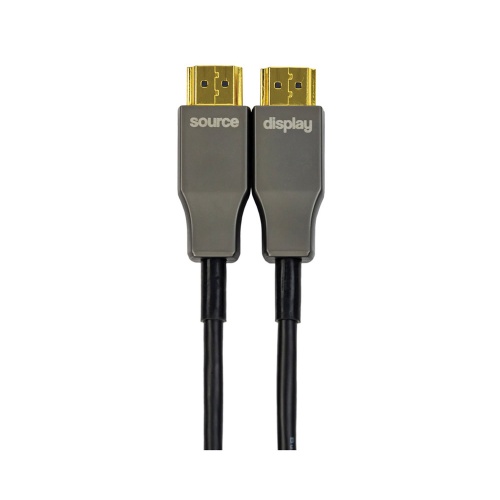

Image of 8A-ACBTSSD60
Shop all AV Pro Edge

AV Pro Edge AC-BTSSF-10KUHD-60 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 60m

AC-BTSSF-10KUHD-60|8A-ACBTSSD60
Shop all AV Pro Edge

AV Pro Edge AC-BTSSF-10KUHD-60 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 60m

AC-BTSSF-10KUHD-60|8A-ACBTSSD60

Sign In for Dealer Pricing

Become an ADI Customer

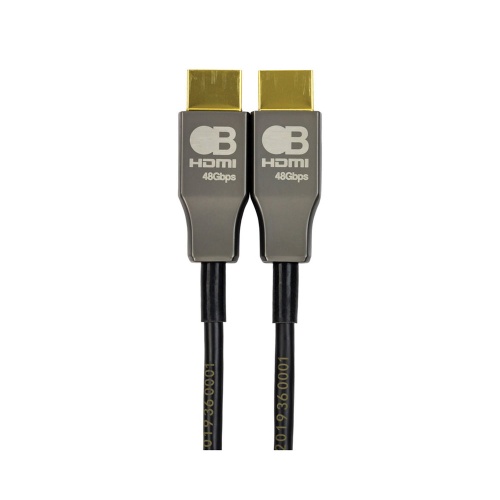

Image of 8A-ACBTSSD60
AV Pro Edge

AV Pro Edge AC-BTSSF-10KUHD-60 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 60m

AC-BTSSF-10KUHD-60 | 8A-ACBTSSD60

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Bullet Train HDMI 2.1 cables are designed for mission-critical environments requiring stable, high-performance video and audio transmission. These Active Optical Cables (AOC) deliver 48Gbps data rates and support high frame rates up to 120 fps, with low latency up to 20% less than passive copper HDMI cables. Certified by the Imaging Science Foundation (ISF) and fully CMP/Plenum rated, they support advanced features including Variable Refresh Rate (VRR), HDR, Dolby Vision, and resolutions up to 10K. The cables include four Cleerline SSF fiber optic strands capable of over 100Gbps and are suitable for in-wall installation, with extensive certifications such as UL 444, CE, FCC, and RoHS compliance.

Main Features

  • Supports 48 Gbps bandwidth and 120 fps/hz frame rate
  • CMP and Plenum cable rated for in-wall installation
  • Supports FRL and VRR variable refresh rate
  • Handles 4K, 5K, 8K and 10K resolutions
  • Includes Ethernet, ARC (5-60m) and eARC (5-20m)
  • Low latency with up to 20% less than passive copper HDMI cable
  • Supports HD and 3D signals with VESA resolutions
  • HDR and Dolby VisionR support
  • Supports 7.1 Audio, Dolby Audio including Atmos, and DTS AudioR
  • Certified UL 444/CSA C22.2, CE, FCC, ISF, RoHS, REACH, CMP, Prop65 Warning

    • General Information

    Name:AV Pro Edge AC-BTSSF-10KUHD-60 Bullet Train 10K HDMI Fiber Cable, 48Gbps, CL2/CL3 Rated, 60m
    Category:AV Pro Edge, Pro AV, Commercial Connector Cables, Pro HDMI Cables
    UPC Code:850001710909
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Manufacturer Brochure
