Belden 9874 060100 20AWG 12-Conductor Multi-Pair Cable, 6-Pair Twisted, 100' (30.5m), Spool Chrome
9874 060100
|7B-987406010
Shop All Belden
Belden 9874 060100 20AWG 12-Conductor Multi-Pair Cable, 6-Pair Twisted, 100' (30.5m), Spool Chrome
9874 060100 | 7B-987406010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

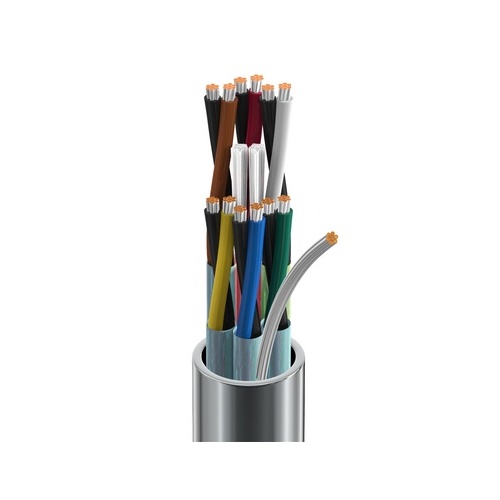

Audio, Control and Instrument Cable, 20AWG stranded (7x28) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil (100% coverage), 22AWG stranded tinned copper drain wire, overall PVC jacket.
Main Features
- Extra Low Capacitance for enhanced reach and data transmission
- Large range of design
- Reliability; LSZH cables offer the same unsurpassed quality and reliability as our Classics series
- Highly Effective Shielding Technology-Belden offers innovative, EMI/RFI protective foil and braid designs, such as Beldfoil, to reduce such interferences
- Environmentally friendly-LSZH materials are non toxic as compared to PVC
- These products meets the REACH and RoHS compliance
- Enhanced resistance to fire with rating up to CPR B2ca as per EN50575
- Using biodegradable packaging material
General Information
Name: Belden 9874 060100 20AWG 12-Conductor Multi-Pair Cable, 6-Pair Twisted, 100' (30.5m), Spool Chrome
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-987406010 Application/Usage ...); low voltage digital control (24v, …); Line Level audio; Computer Communication; Panel Wiring, 0-10v, low voltage analog signals (4-20ma Brand Name Belden Country of Origin MX Manufacturer Part Number 9874 060100 Packaged Quantity 30
American Wire Gauge 20AWG Conductor Count 12 Conductor Material Tinned Copper Number of Conductors 12 Number of Pairs 6 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-80°C
Color Silver Insulation Material PE, PO, PP Jacket Material PVC Material Tinned Copper
Length 100.00'
Environmental Certification CE, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
